Product Model

Liebert® XDU1350 Coolant Distribution Unit

Designed to support liquid cooling within high density environments, the Liebert® XDU1350 Coolant Distribution Unit is suitable for chip & rear door cooling applications to offer easy, cost-effective deployment in any data center. The Liebert® XDU1350 utilizes a liquid-to-liquid heat exchange design, allowing you to tap into the benefits of liquid-cooled servers to more efficiently support higher rack densities while maintaining optimal system conditions.

Get Brochure
Best Suited For:
  • Data Center/Colocation/Hosting
  • Education
  • Healthcare
  • Government
  • Retail and Wholesale

Benefits

Achieve incredible efficiency in high-density environments
Protects secondary liquid network with strict conformance to wetted material compatibility
Intuitively designed for ease of deployment
Accommodates any facility design and with multiple cooling configurations
Robust design with confidence inspiring redundancy options including teaming for the most demanding applications
Integrated controller designed from the ground up to be easy to deploy and supports leak detection
Flexible support services available for installation and maintenance with same day options

Features

Compact footprint allows for in-row deployments
Top or bottom liquid supply & return connections
Integrated 50 micron filter
Large 7”responsive color touch screen display
Precise Temperature Control to eliminate thermal shock for server CPU and GPUs
Intelligent flow monitoring with alarm features
Closed-loop pipe design with integrated leak detection
Easily accessible fill port and drain locations
Innovative Stainless-Steel Design and Hygienic Couplings help ensure Secondary Fluid Network integrity

As data centers adopt liquid cooling, fitting in new cooling distribution infrastructure can be a real challenge. From hyperscale and colocation environments to edge applications, the Vertiv™ XDU simplifies your work with the flexibility to support rear door heat exchangers or direct contact liquid cooling. The Vertiv XDU’s compact footprint allows for end of row or perimeter placement. However, and wherever you incorporate the Vertiv XDU, you can easily distribute coolant to efficiently manage power-dense hot spots liquid to liquid up to 450 kW or 1,368 KW. Compact footprint for deployment flexibility within the row or perimeter; Efficient Cooling Distribution to manage power-dense hot spots and up to 450 kW or 1,368 kW; Precise Temperature Control to eliminate thermal shock for server CPU and GPUs; Redundant Pumps and Dual Power Feeds for optimizing reliable operation; Remote Monitoring available through communications with HTTP, SNMP, RS-485 Modbus, Modbus IP.

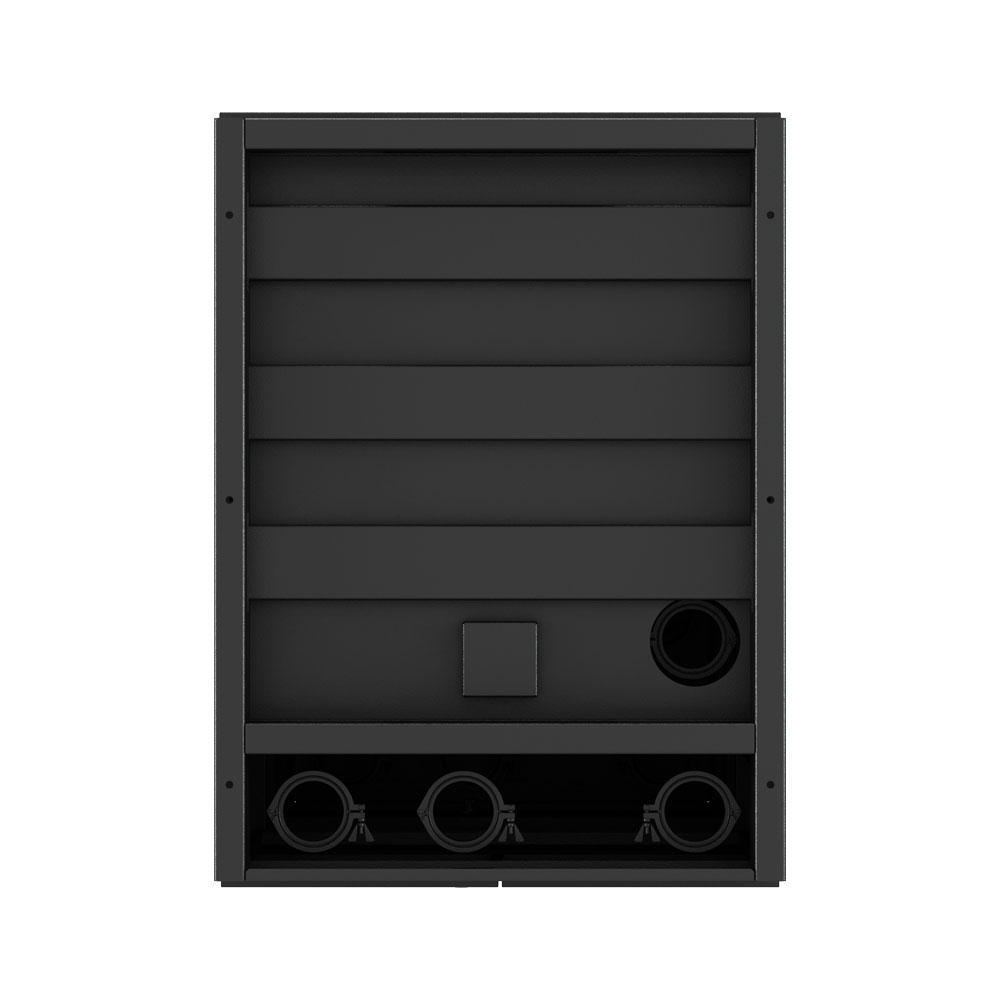

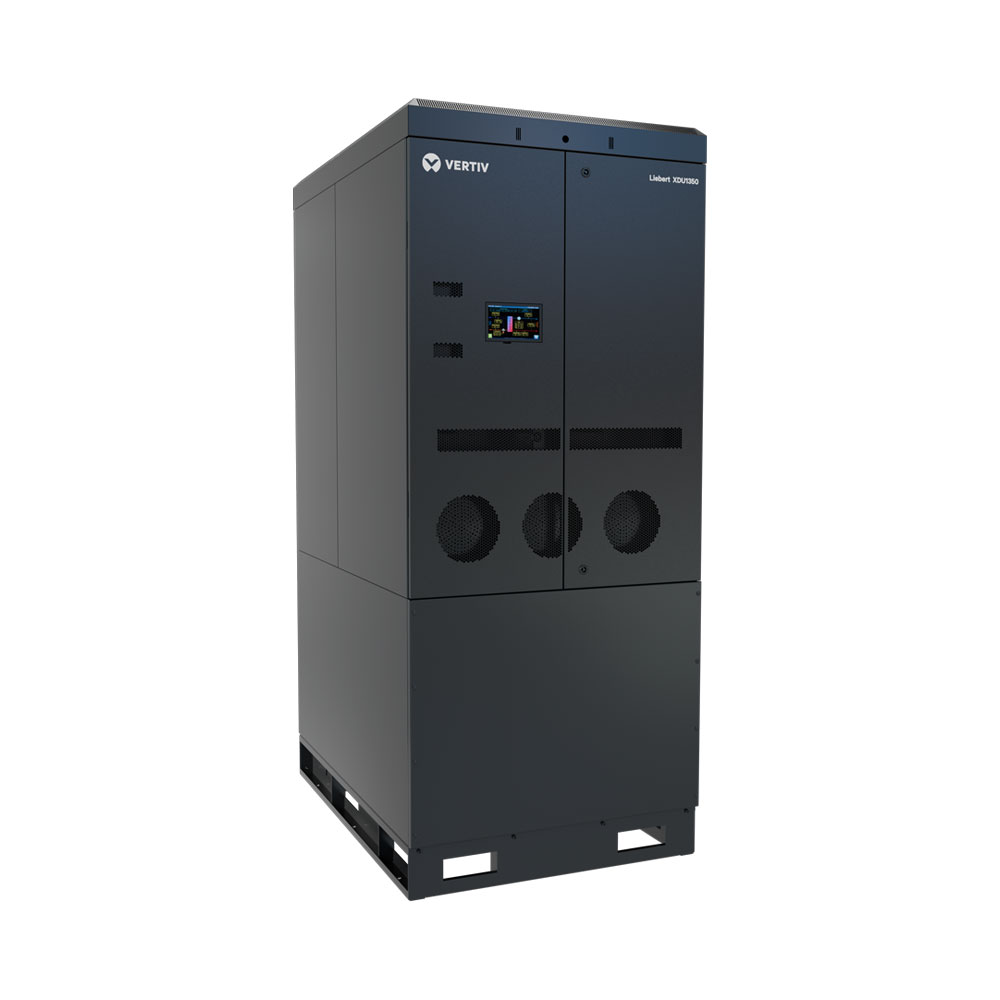

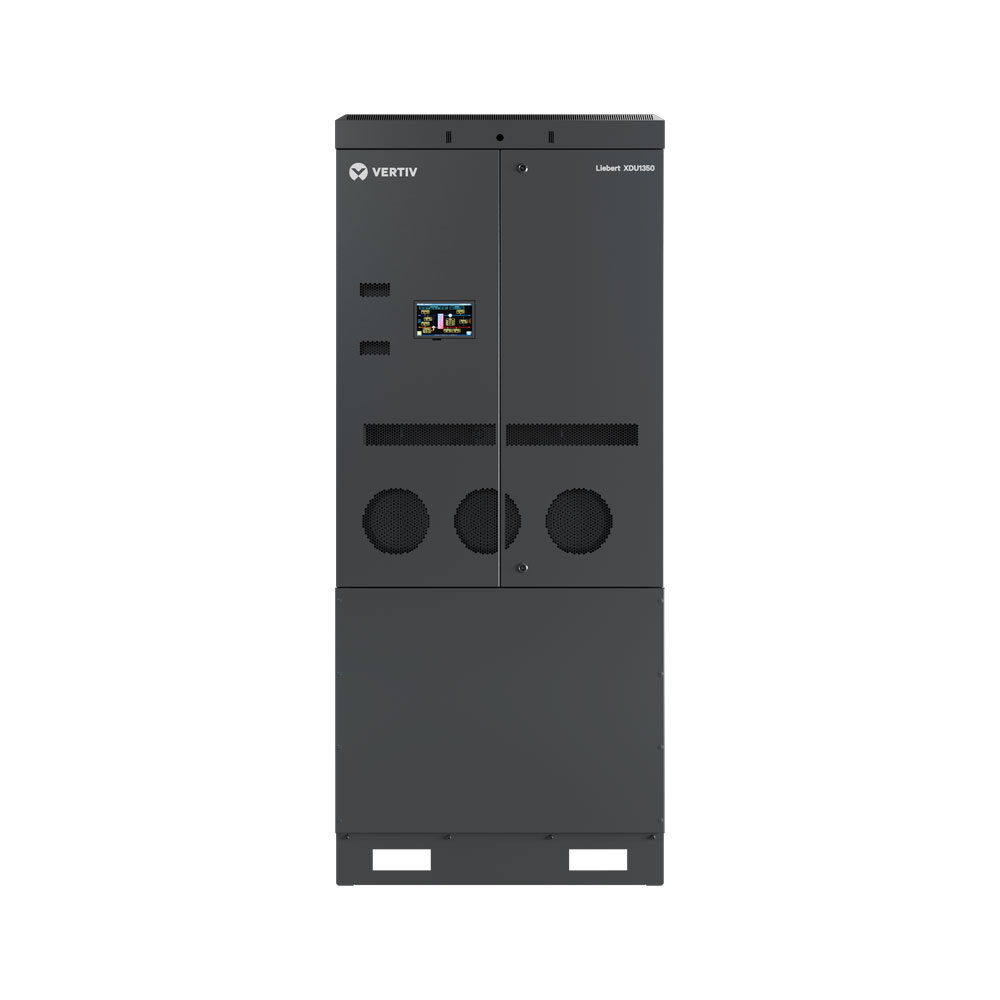

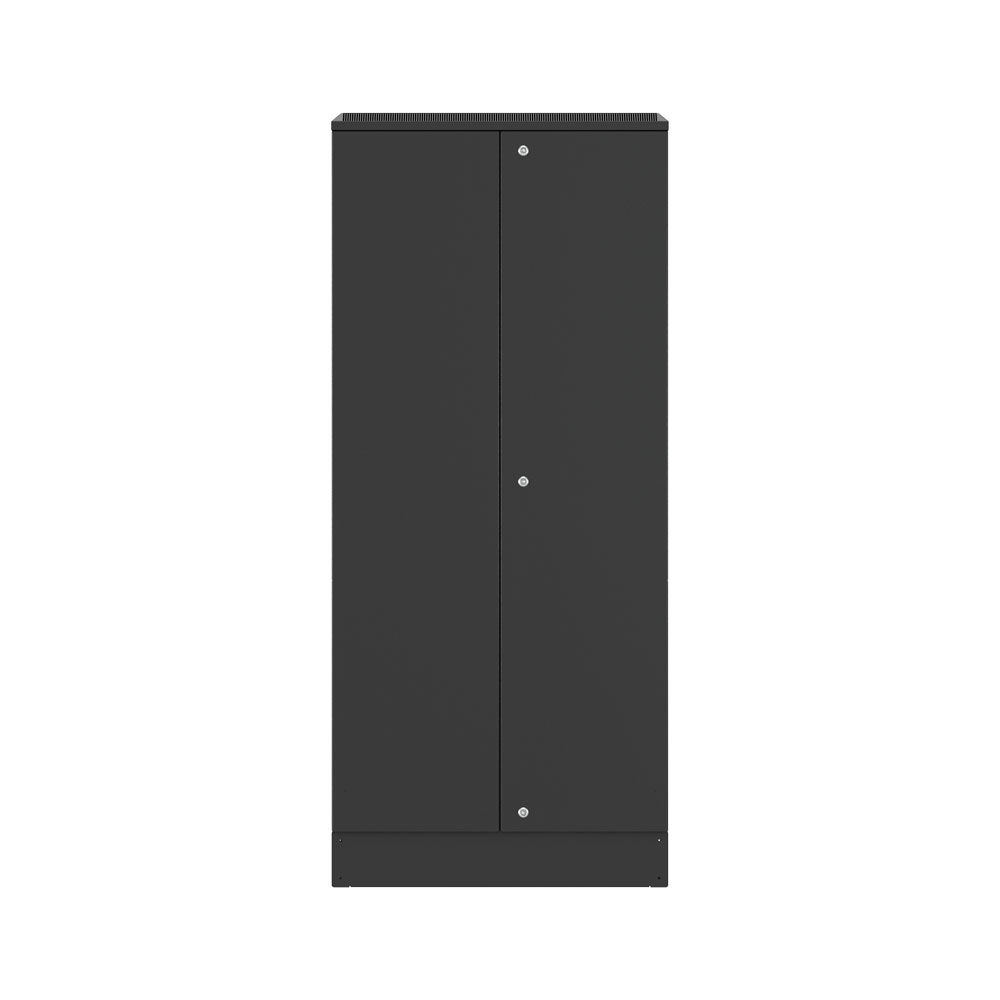

Liebert® XDU1350 Coolant Distribution Unit
Product Specifications
Net Sensible Nominal Capacity kBtuh[kW]*
1368 kW at 7.2 F (4 C): Secondary Circuit flow rate at 320 GPM (1200 l/m) at 35.4 psi ( 2.44 bar) external ΔP
Input Voltage (V/Phase/Frequency Hz)
480 V ,3PH, 60Hz
Controls and Monitoring
Color touch screen display
Key Components
Redundant pump design with variable-speed pump controls
Physical Characteristics
Weight
1431 lbs
Weight
1509 kgs
Height
684 in
Height
2070 mm
Width
35.4 in
Width
900 mm
Depth
48.9 in
Depth
1242 mm

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
