Product Model

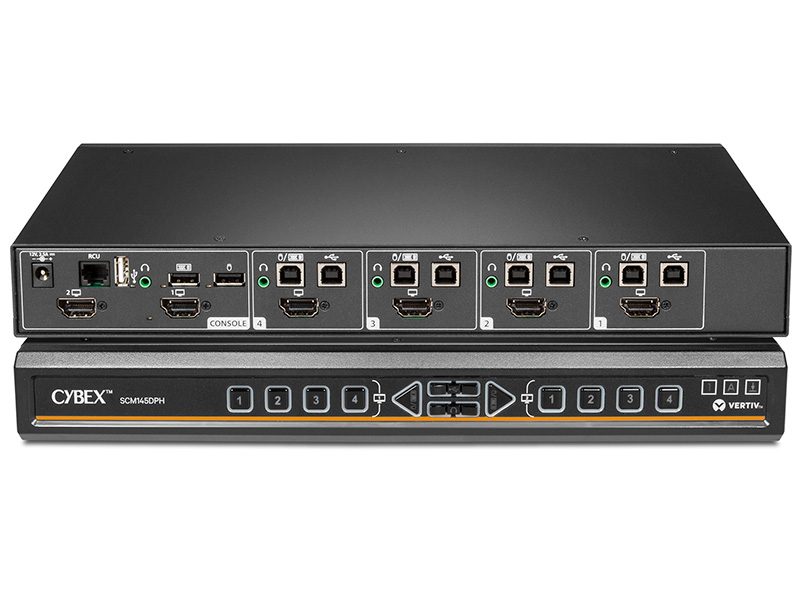

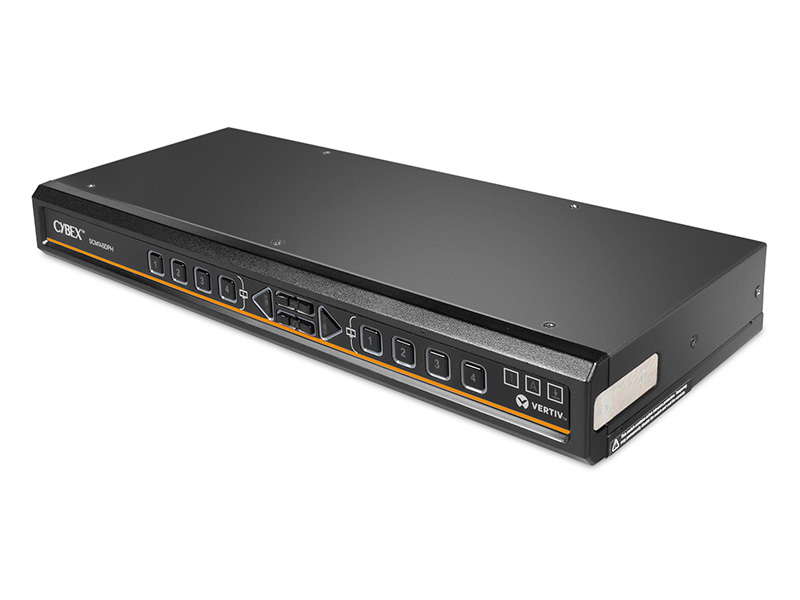

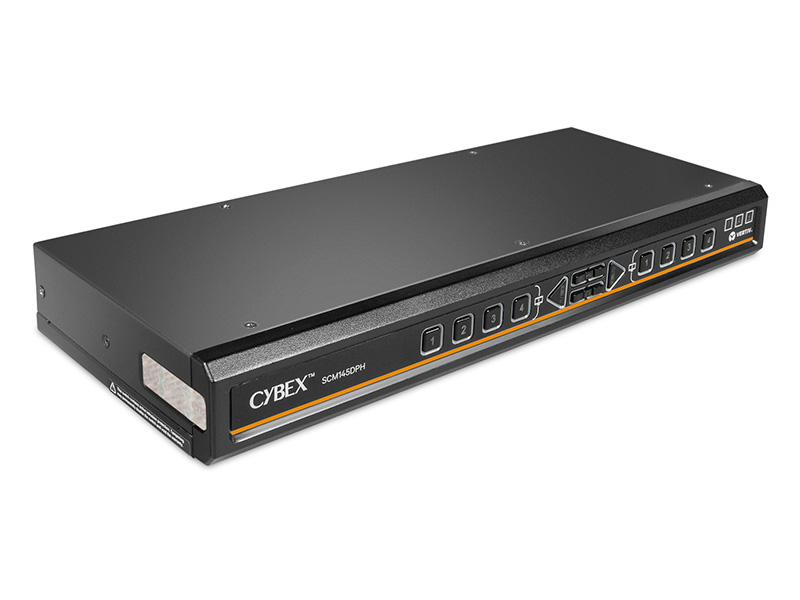

Cybex™ SCM145DPH Secure Desktop Matrix

The Vertiv™ Cybex™ SCM145DPH secure desktop matrix KVM eliminates the need for multiple monitors, keyboards, mice and cables. The Cybex™ secure desktop matrix switch provides users flexibility by offering a universal video port, freeze DPP and audio channel capabilities as well as touch screen support. The Cybex SCM145DPH comes with native video support up to UHD 4K @ 60Hz and smart-card (CAC) or biometric readers for authentication on any attached computer.

Get Brochure Get Manual
Login to Save for Later
Best Suited For:
  • Government
  • Healthcare
Warranty: 3 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

Benefits

View information on two isolated computers simultaneously.
Block unauthorized USB devices while allowing secure switching of smart card and biometric devices between computers·
Universal video connectors to support DP, HDMI, and DVI-D
Vertiv™ patented keyboard lock status indication·
Active intrusion detection and tamper-evident holographic labels prevent hardware from being compromised

Features

Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0
Secure KVM switching allows for instantaneous interaction between two computers from different security classifications
Cursor Navigation Switching (CNS) seamlessly transitions keyboard and mouse control between computers when pressing the left CTRL key and moving the cursor across screen borders
Native video supports up to UHD 4K at 60 Hz
Unidirectional data flow of keyboard, mouse, video, and audio

Cybex™ SCM145DPH Secure Desktop Matrix
Product Overview
Input Ports
(4) DP/HDMI Universal Port
Output Ports
(2) DP/HDMI Universal Ports
Video Resolution
UHD 4K (3840x2160) @ 60Hz
Power Description
Power Supply(s)
1 x external 2.5A Max
Input Power (Maximum)
100-240V AC
Operational Conditions
Operating Temperature
32° to 104° F (0° to 40° C)
Humidity
0-80% RH, non-condensing
Storage Temperature
-4° to 140° F (-20° to 60° C)
Physical Characteristics
Weight
3 lbs
Weight
1.5 kgs
Height
1.7 in
Height
43 mm
Width
13.7 in
Width
342 mm
Depth
5 in
Depth
127 mm
Miscellaneous
Agency Approvals
FCC class A, CE, TUV US, TUV Canada, RCM, VCCI
