Vertiv™ WSN Gateway
Vertiv™ Wireless Sensor Network (WSN) provides an easily deployed platform for improved environmental visibility. Providing secure coverage for larger areas reduces deployment cost and network complexity. With best in class security, the Vertiv™ WSN uses proprietary data packet validation, layered encryption and user approval requirements to ensure your data stays protected. Integration with upstream Vertiv systems provides unmatched versatility and management through a single user interface.
Quick Access
Specifications
Technical Specifications
Vertiv™ WSN Gateway
- Technical Specifications
- Product Line
- Vertiv™ WSN

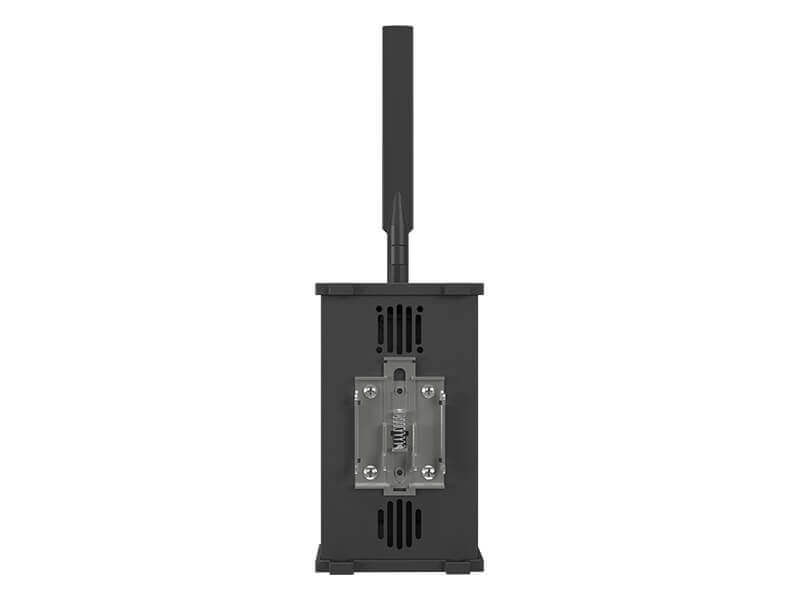

- Mounting
- 35mm Din Rail / Flat Surface
- User Interface
- Web UI
- Power Input
- 12VDC (2.1mm ID x 5.5mm OD Locking Barrel Plug)

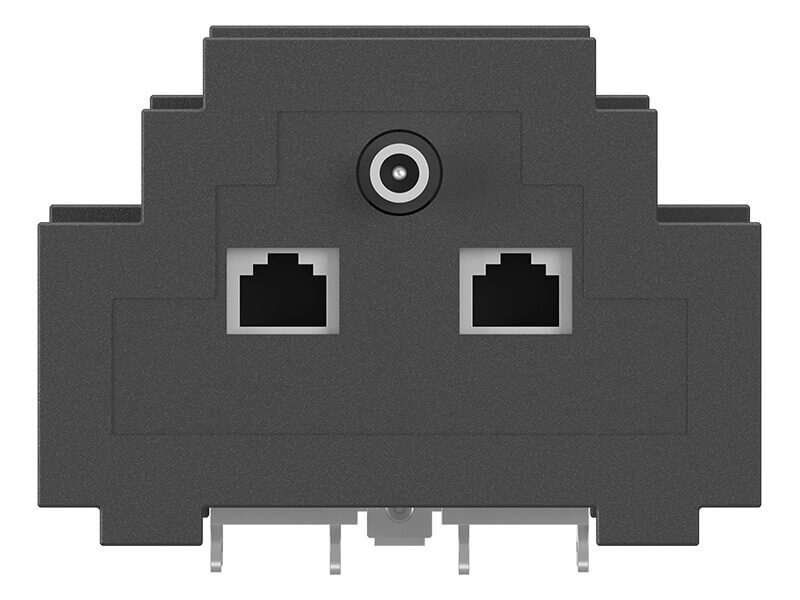

- Ports
- Dual 10/100 base-TX RJ45 CAT5/6 Ethernet
- Operating Environment
- [Indoor] 0°C -> 60°C, non-condensing
- Web User Interface
- Yes
- SNMP
- Yes
- Notifications
- Refreshing data/notifications on Web UI
- Configuration Port
- via Web UI/Ethernet
- Environmental Sensors
- Receives Data from WSN-FLEX
- Direct Integration
- BMS via SNMP, iCOM-S via API
- Inputs
- via Ethernet / WSN-FLEX Sensors
- Networking
- Dual 10/100 base-TX RJ45 CAT5/6 Ethernet
- Height
- 14 in
- Height
- 356 mm
- Width
- 3.87 in
- Width
- 98.3 mm
- Depth
- 2.92 in
- Depth
- 74.2 mm
Brochures and Data Sheets
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Vertiv™ WSN Gateway
Warranty : One Year Limited Warranty Against Defects in Material and Workmanship
Benefits
Substantially decrease installation labor costs compared to wired solutions
Save up to 15% in material costs with less to manage and deploy
Decrease install time
Effectively monitor data center environment with a single user interface for many sensors
Act fast if a problem occurs
Improved end-to-end security
Fast firmware updates and device configuration
Flexible, fast relocation options
Features
Wireless communication of sensor data
Single button push sensor joins
Wireless protocol provides increased sensor distance
Multi-layer encryption with network lockdown
Restricts automatic incorporation of wireless values into mission critical control
Custom APIs for seamless integration
Auto-discovery of new Vertiv wireless devices via Vertiv gateway
Wireless radio comes standard with temperature, humidity, two flex IO ports, accelerometer and beeper
