Product Model

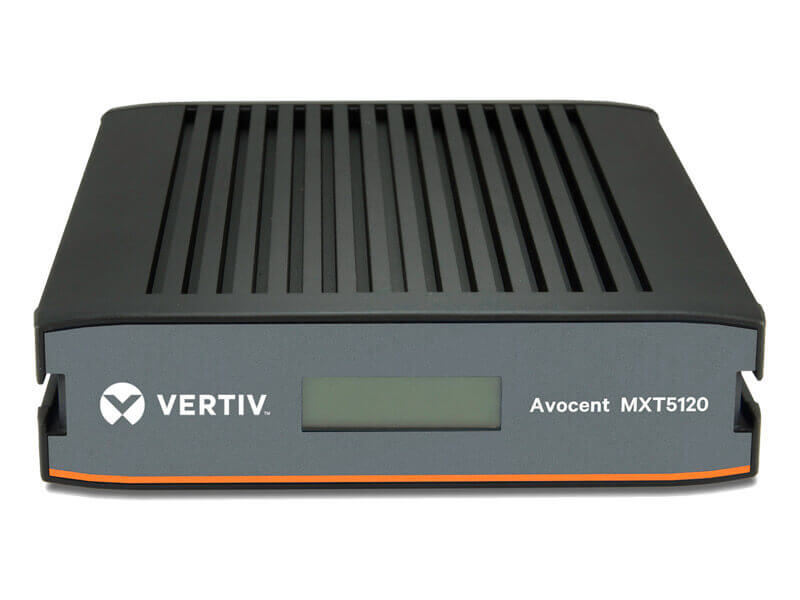

Avocent Matrix MXT5120 VGA Transmitter

The Avocent Matrix is ideal for demanding applications such as broadcast, post-production, traffic control, military command and control infrastructure, medical and control centers.

Get Brochure View Accessories
Login to Save for Later
Best Suited For:
  • Military, Defense, Aerospace and Missile
  • Banking, Financial and Insurance
  • Broadcast and Entertainment
  • Chemical/Petrochemical (excl. Oil & Gas)
  • Data Center/Colocation/Hosting
  • Education
  • Government
  • Healthcare
  • Nuclear Power
  • Oil and Gas
  • Transportation
Warranty: 2 Years

Benefits

Features

Multi-User Access - Avocent Matrix provides up to hundreds of users with non-blocked access to connected servers and equipment, allowing for multi-user access at any time.
Scalable, Expandable Architecture -Thousands of devices can be connected through cascading and expanding the system is easy to im​plement.
Intuitive Administration - Through the web interface or Matrix Manager software, a single management system allows you to manage devices, users, and peripherals. Advanced features also exist to establish macros, event notification, high availability, and external API access.
High Performance Video, Audio, and USB - Remotely access applications with a exceptional USB, audio, and resolution up to 1920 x 1200.​

Avocent Matrix MXT5120 VGA Transmitter
Product Overview
Input Ports
USB-B x 1
Output Ports
Speaker & Mic
Video Connection
1 x VGA
Video Resolution
1920x1200
Graphic Mode
Internal Modem
NO
Power Description
Power Supply(s)
Yes
Input Power (Maximum)
100-240V 50/60 Hz
Interfaces/Ports
Network Interface(s)
1 x RJ45
USB ports
1 x USB Type B
USB Hub Support
USB 2.0 with Class Control
Operational Conditions
Operating Temperature
0 to 45ºC / 32 to 113ºF
Humidity
10% to 90% non-condensing
Storage Temperature
-31° to 158°F (-35° to 70°C)
Physical Characteristics
Weight
1.4 lbs
Weight
0.64 kgs
Height
1.21 in
Height
30.73 mm
Width
4.75 in
Width
120.65 mm
Depth
6.20 in
Depth
157.48 mm
Miscellaneous
Agency Approvals
CE, FCC, UL
