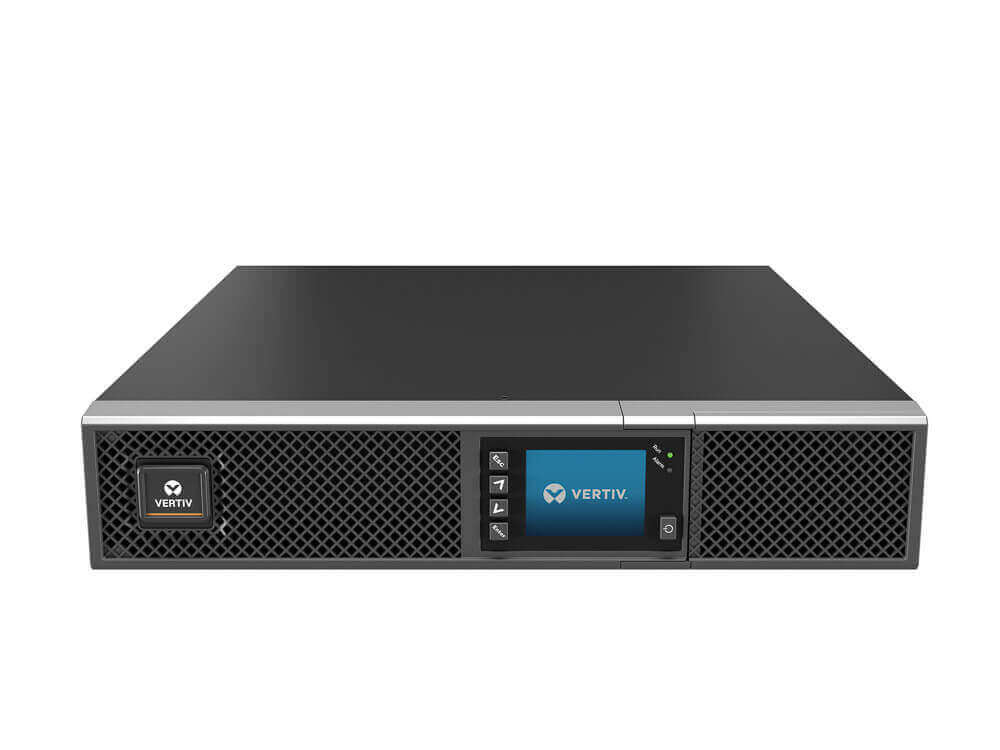

Vertiv™ Liebert® GXT5 UPS, 500-3000VA 120V UPS
The Vertiv™ Liebert® GXT5 UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible rack/tower design. This single-phase UPS family provides superior protection and remote management capability, making it ideally suited to protect critical infrastructure in both centralized and edge network applications. Additionally, the Liebert GXT5 UPS offers a scalable battery runtime solution through matching external battery cabinets.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Education
- Government
- Healthcare
- Retail and Wholesale
- Banking, Financial and Insurance
Vertiv™ Liebert® GXT5 UPS, 500-3000VA 120V UPS
The Vertiv™ Liebert® GXT5 UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible rack/tower design. This single-phase UPS family provides superior protection and remote management capability, making it ideally suited to protect critical infrastructure in both centralized and edge network applications. Additionally, the Liebert GXT5 UPS offers a scalable battery runtime solution through matching external battery cabinets.
- Education
- Government
- Healthcare
- Retail and Wholesale
- Banking, Financial and Insurance
Specifications

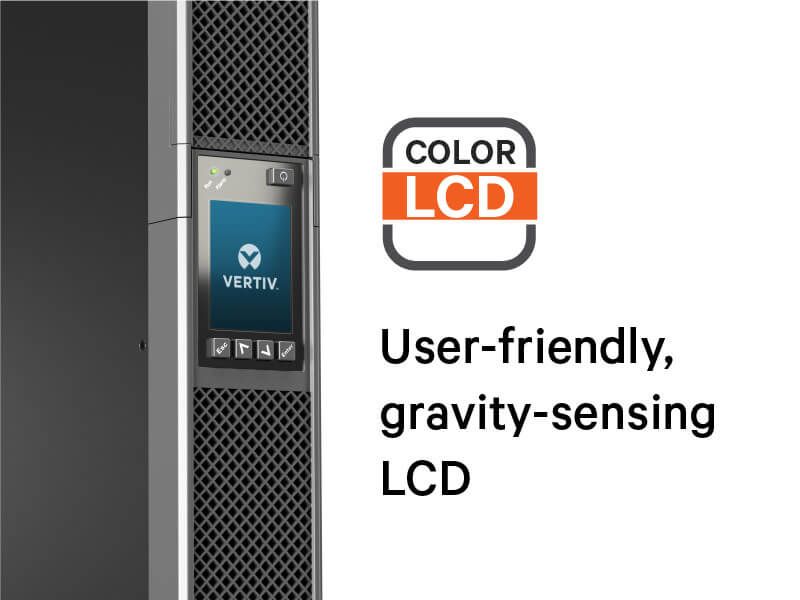

The Vertiv™ Liebert® GXT5 UPS offers a full range of single-phase UPS. It’s easy to deploy with convertible rack/tower design that offers installation flexibility, and its gravity-sensing, color LCD provides a user-friendly interface for local configuration and management. Setup and configuration is also made easy auto-detection of external battery cabinets for additional runtime solutions. With available network card (NIC), the Vertiv suite of management solutions including Trellis™ Power Insight and Vertiv™ LIFE™ Services remote service delivery tools are available to support your critical infrastructure. Designed for high availability and capacity, these UPS models with high output power factors up to unity, provide more usable power in a compact solution, enabling more usable power for connected equipment. High efficiency operation of this Energy Star® 2.0 certified UPS means you get protection while being energy conscience. Increased efficiency is also achieved with Active ECO operating mode.
|

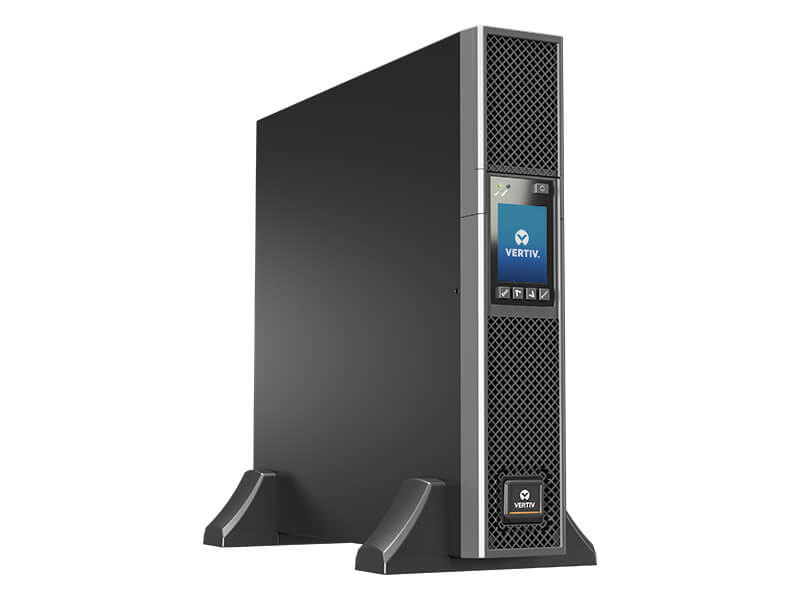

GXT5-500LVRT2UXL
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 500VA / 500W | Typical: 120V / Range: 60-150V | 110/115/120/125VAC; (user-configurable); ±3% | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: NEMA 5-15P; Output: 5-15R × 6 | 3.4 in | 16.9 in | 15.7 in | 37 lb |
| See more product information | ||||||||
|
GXT5-500LVRT2UXLN
|
||||||||
| 500VA / 500W | Typical: 120V / Range: 60-150V | 110/115/120/125VAC; (user-configurable); ±3% | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: NEMA 5-15P; Output: 5-15R × 6 | 3.4 in | 16.9 in | 15.7 in | 37 lb |
| See more product information | ||||||||
|
GXT5-750LVRT2UXL
|
||||||||
| 750VA / 750W | Typical: 120V / Range: 60-150V | 110/115/120/125VAC; (user-configurable); ±3% | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: NEMA 5-15P; Output: 5-15R × 6 | 3.4 in | 16.9 in | 15.7 in | 37 lb |
| See more product information | ||||||||
|
GXT5-750LVRT2UXLN
|
||||||||
| 750VA / 750W | Typical: 120V / Range: 60-150V | 110/115/120/125VAC; (user-configurable); ±3% | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: NEMA 5-15P; Output: 5-15R × 6 | 3.4 in | 16.9 in | 15.7 in | 37 lb |
| See more product information | ||||||||
|
GXT5-1000LVRT2UXL
|
||||||||
| 1000VA / 1000W | Typical: 120V / Range: 60-150V | 110/115/120/125VAC; (user-configurable); ±3% | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: NEMA 5-15P; Output: 5-15R × 6 | 3.4 in | 16.9 in | 15.7 in | 37 lb |
| See more product information | ||||||||
|
GXT5-1000LVRT2UXLN
|
||||||||
| 1000VA / 1000W | Typical: 120V / Range: 60-150V | 110/115/120/125VAC; (user-configurable); ±3% | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: NEMA 5-15P; Output: 5-15R × 6 | 3.4 in | 16.9 in | 15.7 in | 37 lb |
| See more product information | ||||||||
|
GXT5-1500LVRT2UXL
|
||||||||
| 1500VA /1350W | Typical: 120V / Range: 60-150V | 110/115/120/125VAC; (user-configurable); ±3% | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: NEMA 5-15P A; Output: 5-15R × 6 | 3.4 in | 16.9 in | 18.6 in | 46.2 lb |
| See more product information | ||||||||
|
GXT5-1500LVRT2UXLN
|
||||||||
| 1500VA /1350W | Typical: 120V / Range: 60-150V | 110/115/120/125VAC; (user-configurable); ±3% | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: NEMA 5-15P A; Output: 5-15R × 6 | 3.4 in | 16.9 in | 18.6 in | 46.2 lb |
| See more product information | ||||||||
|
GXT5-2000LVRT2UXL
|
||||||||
| 2000VA / 1800W | Typical: 120V / Range: 60-150V | 110/115/120/125VAC; (user-configurable); ±3% | Up to 98% Active ECO Mode; up to 95% on-line mode | Entrada: NBR 14136-20A; Saída: NBR 14316-20A x 4 | 3.4 in | 16.9 in | 18.5 in | 47.5 lb |
| See more product information | ||||||||
|
GXT5-2000LVRT2UXLN
|
||||||||
| 2000VA / 1800W | Typical: 120V / Range: 60-150V | 110/115/120/125VAC; (user-configurable); ±3% | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: NEMA L5-20P A; Output: L5-20R+5-20R × 6 | 3.4 in | 16.9 in | 18.5 in | 47.5 lb |
| See more product information | ||||||||
|
GXT5-3000LVRT2UXL
|
||||||||
| 3000VA / 2700W | Typical: 120V / Range: 60-150V | 110/115/120/125VAC; (user-configurable); ±3% | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: NEMA L5-30P; Output: L5-30R+5-20R × 6 | 3.4 in | 16.9 in | 21.3 in | 66 lb |
| See more product information | ||||||||
|
GXT5-3000LVRT2UXLN
|
||||||||
| 3000VA / 2700W | Typical: 120V / Range: 60-150V | 110/115/120/125VAC; (user-configurable); ±3% | Up to 98% Active ECO Mode; up to 95% on-line mode | Input: NEMA L5-30P; Output: L5-30R+5-20R × 6 | 3.4 in | 16.9 in | 21.3 in | 66 lb |
| See more product information | ||||||||
|

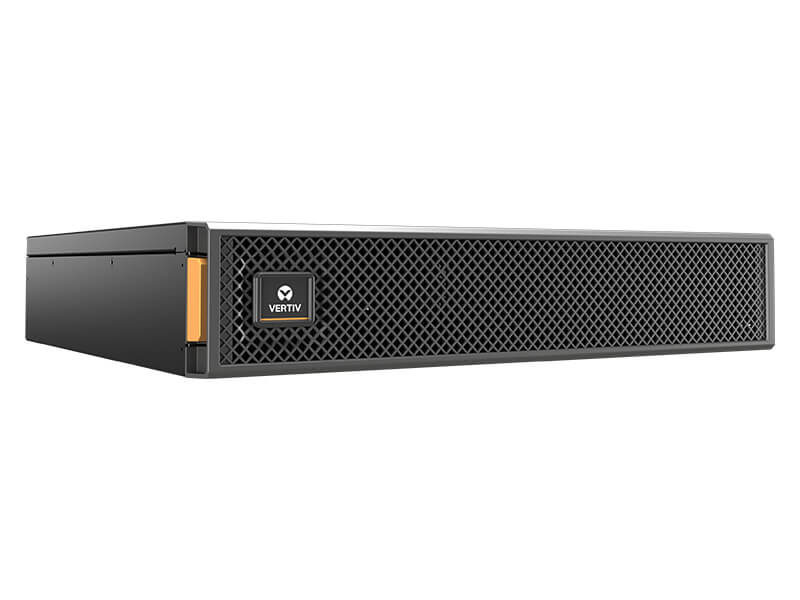

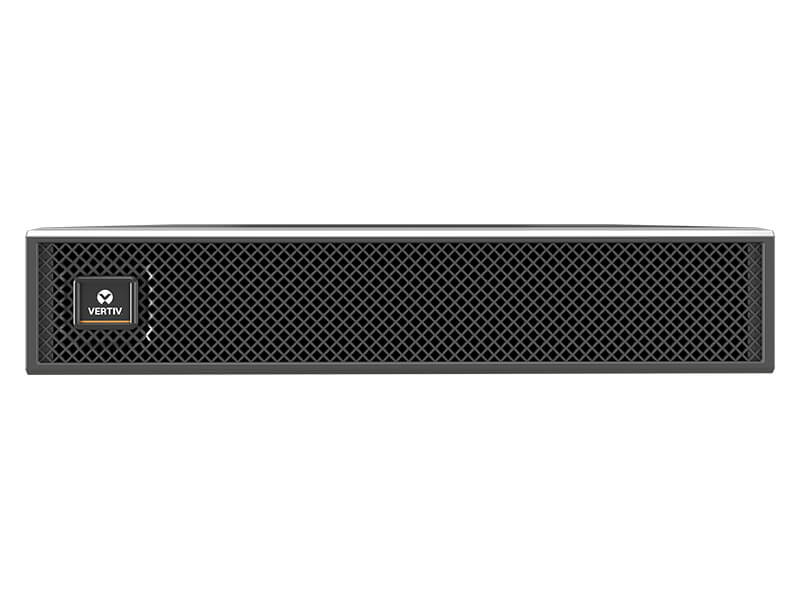

GXT5-EBC36VRT2U
|
||||||||
| 3.4 in | 16.9 in | 15.8 in | 48.4 lb | |||||
| See more product information | ||||||||
|

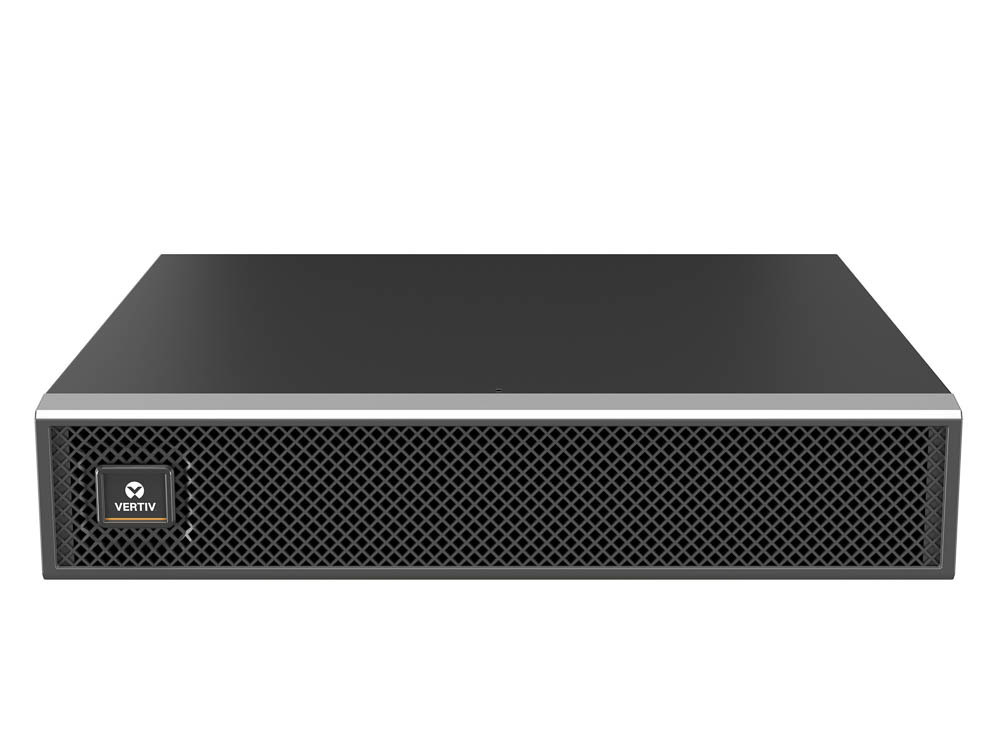

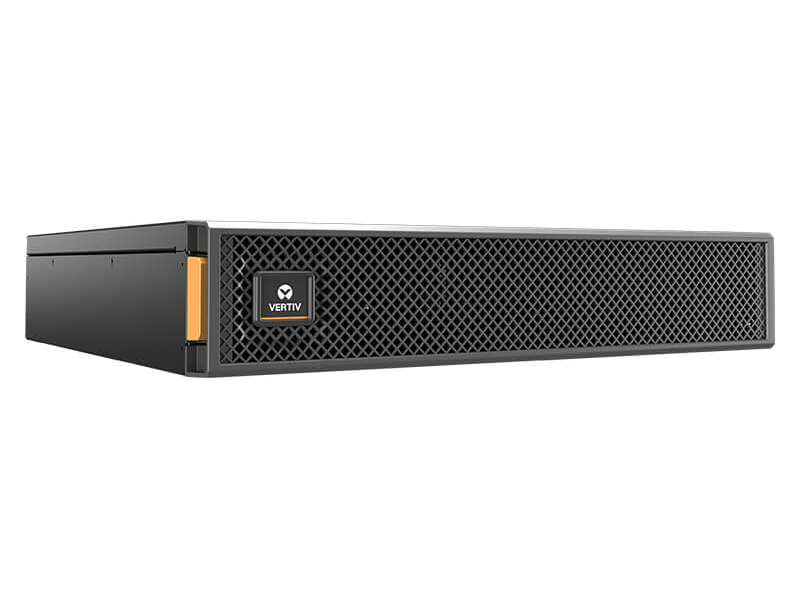

GXT5-EBC48VRT2U
|
||||||||
| 3.4 in | 16.9 in | 18.6 in | 57.3 lb | |||||
| See more product information | ||||||||
|
GXT5-EBC72VRT2U
|
||||||||
| 3.4 in | 16.9 in | 21.3 in | 85.8 lb | |||||
| See more product information |
Benefits
Features
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Find Your Area Contact
Products Support Contacts
Change
Related Products And Services

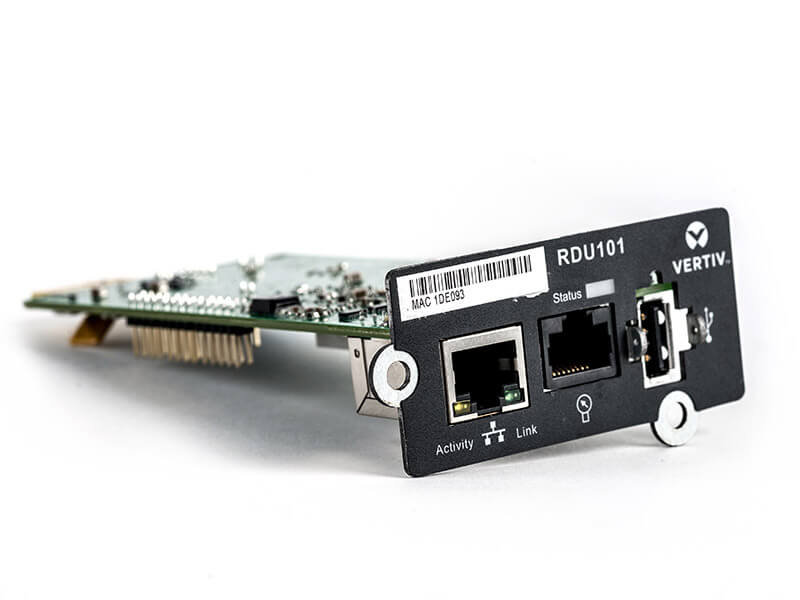

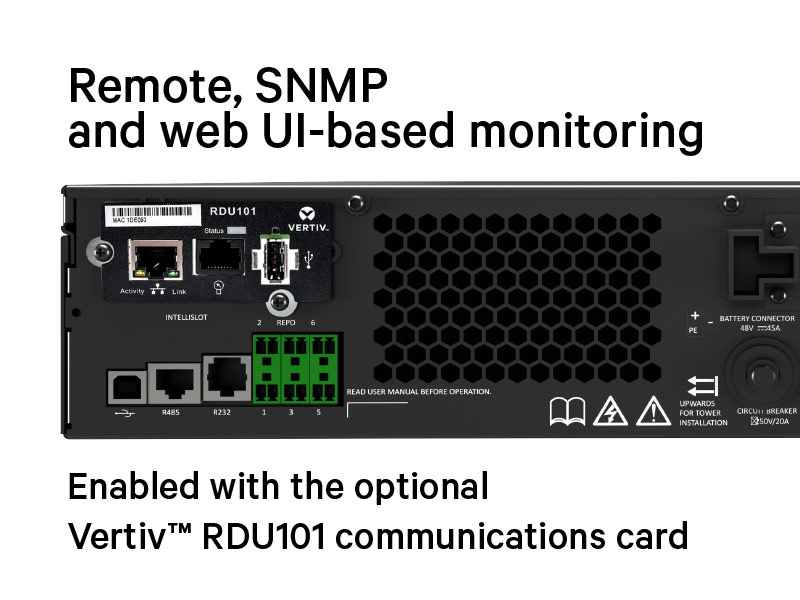

The Vertiv™ Liebert® IntelliSlot™ RDU101 Communications Card enables communication between Vertiv™ products such as Trellis™ Enterprise, Trellis™ Power Insight and LIFE™ Services. It provides web access, data via SNMP and Modbus TCP for Vertiv equipment. Environmental sensor data is provided via web and SNMP.
Vertiv™ Power Insight helps improve efficiency, protect valuable critical equipment and increases visibility of your UPSs and rPDUs. It is a web-based software designed for users with a distributed infrastructure who need a way to manage multiple devices. The software is simple to install, easy to use application that provides a single interface for up to 100 UPSs and rPDUs.
Managing your small, remote, or dispersed mission-critical IT sites is a major challenge. While outages are not an option, neither is sacrificing your busy IT staff to set up and maintain UPS systems. Vertiv’s Power Assurance Package delivers convenient and cost-effective support for power delivery to your small IT sites.
While you may be equipped to handle small UPS battery replacement on your own, having factory-authorized technicians do the work for you augments your busy IT staff with a team of experts who can literally do the heavy lifting for you. We’ll partner with you to ensure continuous power for support of vital business applications by finding the best solution for your needs — from DIY battery replacement to UPS replacement with full service protection.
