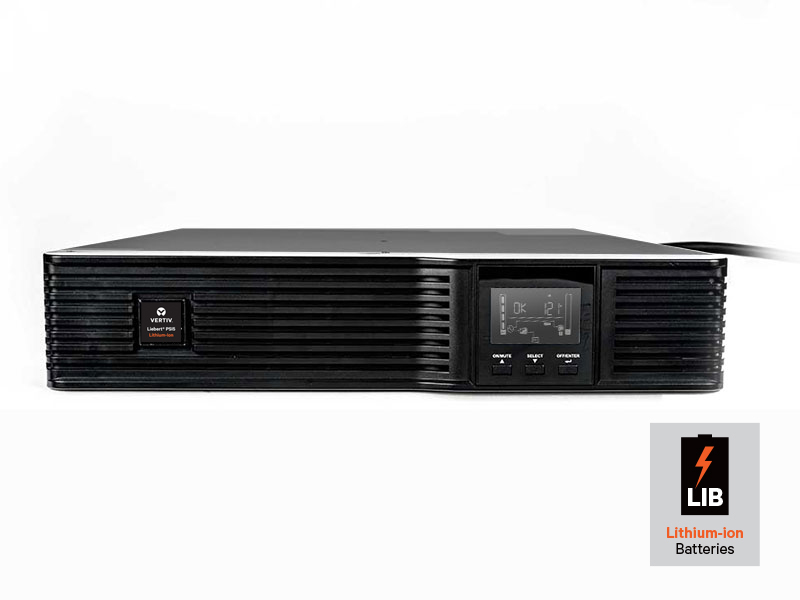

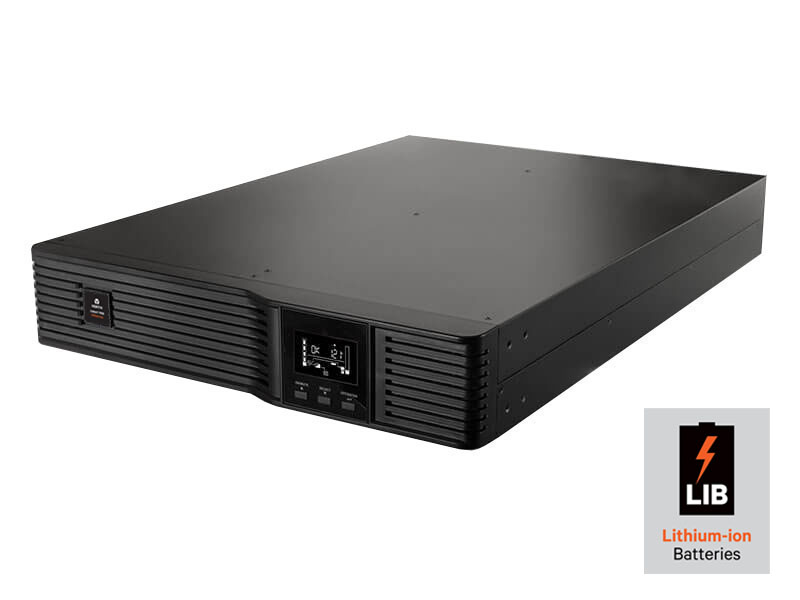

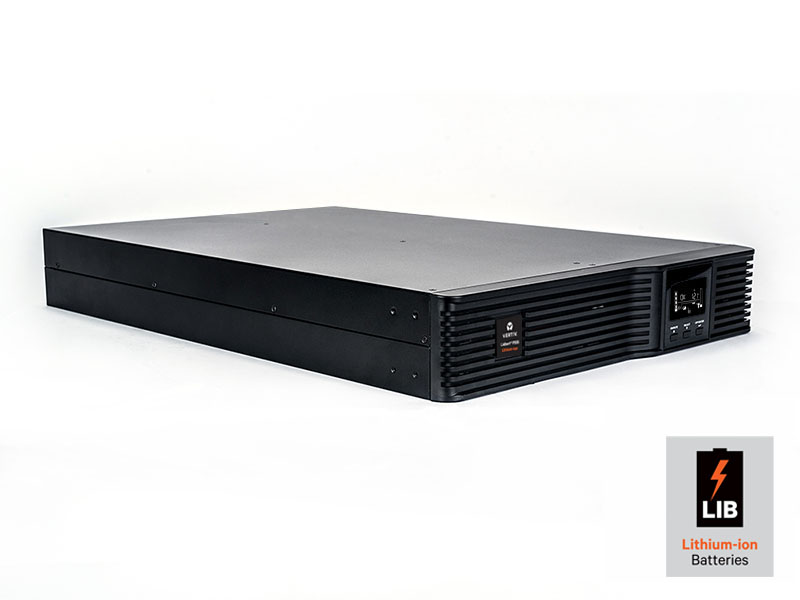

PSI5-3000RT120LI
The Vertiv™ Liebert® PSI5 Lithium-Ion UPS is designed to safeguard critical equipment in edge and distributed IT applications. The 3kVA UPS offers more than double the battery life of a traditional VLRA UPS, and comes with a five-year advanced replacement warranty. This Lithium-Ion battery backup includes AVR technology to extend battery life and provides protection from power disturbances. This line interactive UPS system has a rotating LCD display to allow both rack and tower configurations
- Education
- Banking, Financial and Insurance
- Government
- Healthcare
- Retail and Wholesale
Benefits
Features
Specifications

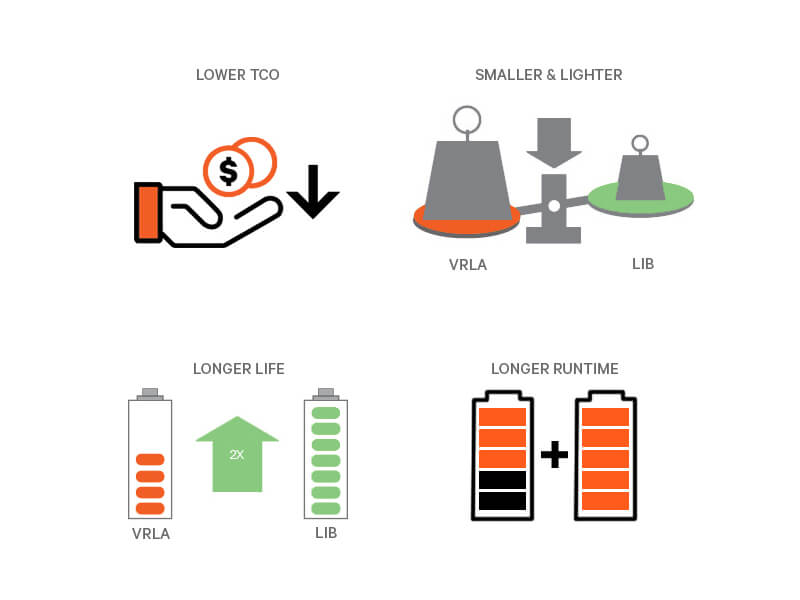

The Liebert® PSI5 Lithium-ion UPS is ideally suited to protect critical infrastructure in edge or distributed IT applications. Lithium-ion batteries have a life expectancy twice that of VRLA batteries – up to 10 years. That translates to fewer (if any) battery replacements over the lifespan of the UPS, which means savings on batteries as well as the labor to install them – an especially important issue at remote locations with few or no IT personnel on site. It adds up to a 50% lower total cost of ownership vs. VLRA batteries. The Liebert® PSI5 Lithium-ion line interactive UPS includes automatic voltage regulation (AVR) technology, which protects against utility voltage fluctuation to extend battery life by maximizing time on utility power, and provides premium protection from power disturbances. In battery mode, the Liebert® PSI5 UPS delivers pure sine wave output to protect sensitive servers and networking equipment. With up to 20 min. of runtime at half load and 9 min. at full load – more than comparable competing models – the Liebert® PSI5 Lithium-ion UPS provides plenty of runtime during an outage for an orderly shutdown. It comes with a rotating LCD display to allow both rack and tower configurations, provides real time information regarding UPS status and operating conditions, and supports remote monitoring. It's also highly energy efficient, delivering up to 97% efficiency at full load in normal operating mode. You can rest assured your business is protected with this Vertiv™ solution, which includes a 5-year full factory warranty. The Liebert® PSI5 Lithium-ion UPS is a true low-maintenance, set-it-and-forget-it solution.
- Product Overview
- Power Rating
- 3000VA / 2700W
- Input Voltage
- Nominal: 120VAC / Range: 75-146VAC
- Output Voltage
- 120VAC Default; 100/110/115/125VAC User Selectable
- Efficiency
- Up to 97.3% (Normal Mode)
- Wiring
- Input: L5-30P; Ouput: 6 x 5-20R, 1 x L5-30R
- Interfaces/Ports
- Interface Options
- Optional communications card (Liebert® IntelliSlot™ UNITY), USB, EPO connector
- Protocols
- SNMP and web management enabled with optional Liebert® IntelliSlot™ UNITY communications card
- Control Panel
- Rotatable LCD display provides flexible installation options (rack/tower)
- Service Access
- Front Access (hot-swappable battery kits)
- Operational Conditions
- Operating Temperature
- 32° to 104° F (0° to 40° C)
- Miscellaneous
- General
- Pure sinewave output on battery
- Listings
- UN38.3, UL 1778, c-UL-us Listed, NOM, FCC Part 15, Class B
- Topology
- Line-interactive (automatic voltage regulation)
- Liebert® PSI5 UPS 800-5000VA User Guide
- Liebert® PSI5 Lithium-ion UPS Quick Installation Guide
- Vertiv™ Liebert® PSI5 Lithium-Ion 3 kVA, 120 V Installer User Guide (SL-70806)
- Vertiv™ Liebert® PSI5 Lithium-Ion 3 kVA, 120 V Installer User Guide (SL-70806) - ES-LA
- Vertiv™ Liebert® PSI5 Lithium-Ion 3 kVA, 120 V Installer User Guide (SL-70806) - FR-CA
- Vertiv™ Liebert® PSI5 Lithium-Ion 3 kVA Short Depth UPS Quick Installation Guide (SL-70815)
- Runtime Tool: Vertiv™ Liebert® PSI5-3000RT120LI
- Liebert® PSI5 Lithium-Ion UPS Brochure (SL-70585)
- Liebert® PSI5 Lithium-Ion UPS Data Sheet (SL-70581)
- Data Center Infrastructure Solutions - Channel Products Catalog
- Vertiv™ E-Rate Eligible Brochure
- Vertiv™ Equipment Protection Plan
- Liebert® PSI5 Lithium-Ion Short Depth UPS Data Sheet (SL-70889)
- Vertiv™ Liebert® PSI5 Lithium-Ion Frequently Asked Questions (SL-70768)
- Vertiv™ Lithium-Ion UPS Catalog SL-71049
