Quick Access
Product Model
Vertiv™ Liebert® EXS UPS - QA Test
10kVA, 10kW, 208, 220
Liebert EXS UPS 10kVA, 208V
The Liebert® EXS UPS delivers simplicity, reliability and efficiency in a compact three phase power solution. The integrated design and reduced footprint provides maximum power capacity. Robust availability is ensured from the integrated maintenance bypass and advanced monitoring capabilities. Flexibility is enhanced using output distribution and variable battery runtime options. Low TCO is maintained from the high operating efficiency levels and reduced installation costs.
Quick Access
Specifications
Technical Specifications
Liebert EXS UPS 10kVA, 208V
- Product Overview
- Runtime
- View Runtime Table
- Weight
- 437-627
- Weight
- 198.2-284.4
- Height
- 51.2
- Height
- 1300
- Width
- 13
- Width
- 335
- Depth
- 25.6
- Depth
- 650
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Liebert EXS UPS 10kVA, 208V

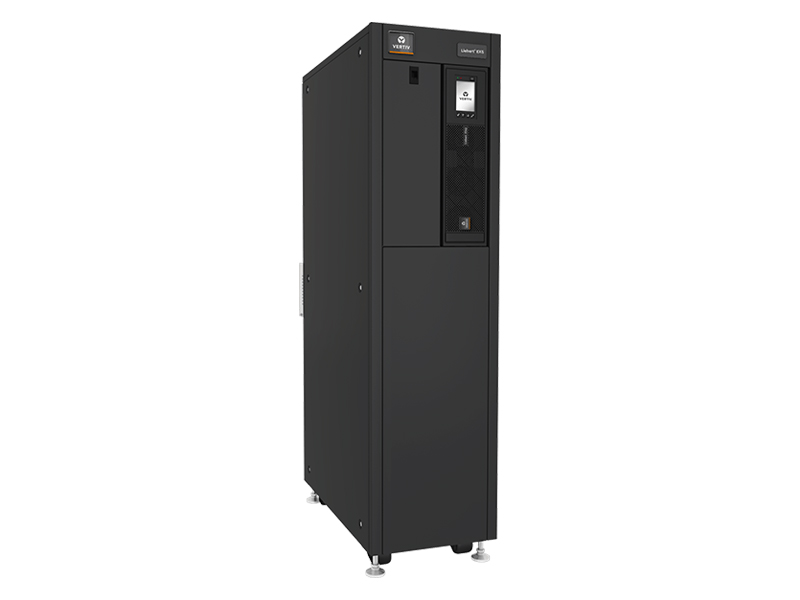

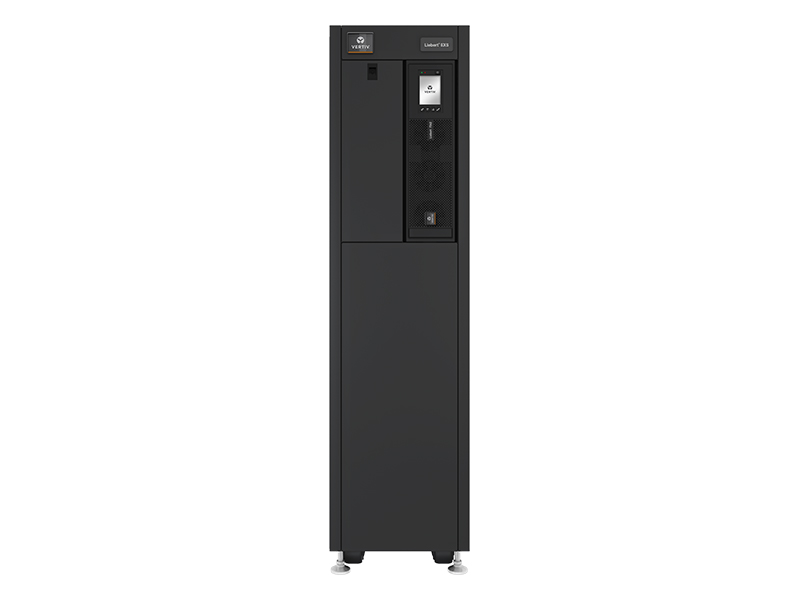

The Liebert® EXS is a monolithic transformer-free UPS that provides on-line protection using a three-phase (in/out), 208/220V design that is optimized in a compact tower cabinet. Flexible configurations offer users a simple, reliable and economical power solution.
Warranty : One Year Limited Warranty Against Defects in Material and Workmanship
Benefits
Compact footprint
Integrated design improves optimization while lowering complexity
Extended battery runtime options
High power density
Installation ease and flexibility
High availabilityreduces downtime
Intelligent local and remote monitoring
Features
Compact, integratedtower design
High power density
Efficient double conversion operation up to 94%
ECO mode efficiency up to 99%
Unity output power factor
Flexible battery runtimes
Integrated output power distribution options
Integrated maintenance bypass
Frequency and voltage regulation
Intelligent battery management
Programmable dry contacts
Robust short circuit withstand ratings
Network communication card allows connectivity to monitor critical systems
Trellis Power Insight available
Vertiv LIFE Services remote management capable
