Product Model

VP4N32A0

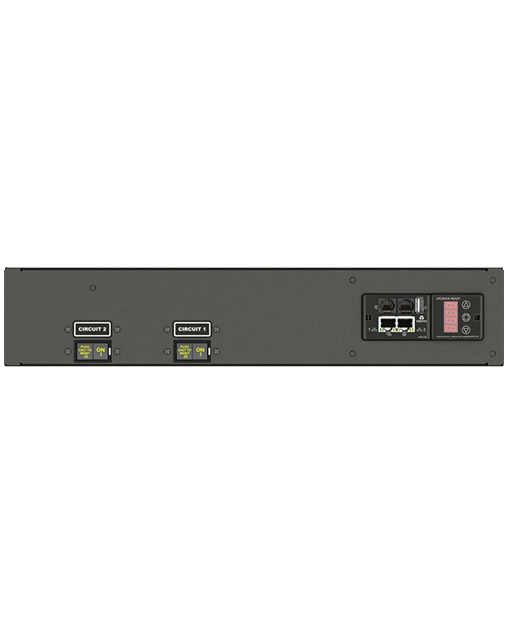

Unit Level Monitored Rack Power Distribution Unit VP4N32A0 is a 30A, 208V 2U horizontal with input power monitoring. It has 12 IEC C13 and 4 IEC C19 receptacles and a NEMA L6-30P providing 4.9 kW of power capacity. The unit is equipped with an environmental sensor port and dual ethernet ports to simplify management of multiple rPDUs with fault-tolerant daisy chaining or IP aggregation capabilities.

Get Manual

Warranty: Vertiv™ Geist™ Monitored rPDUs come with a standard three-year warranty that is automatically extended to five years, if the product is registered within 120 days of purchase.

Product Model

VP4N32A0

Get Manual

Warranty: Vertiv™ Geist™ Monitored rPDUs come with a standard three-year warranty that is automatically extended to five years, if the product is registered within 120 days of purchase.

Benefits

Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.

Environmental monitoring capabilities ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.

Upgrade your hot-swappable monitoring device on the fly to leverage new technologies and accommodate changing business needs without having to replace entire power strips.

Every unit is 100% tested for reliability and functionality to ensure units function as designed.

North American units are UL listed in accordance with common data center and insurance provider requirements.

Standard three-year warranty, upgraded to five years with product registration.

Features

Hot-Swappable and upgradeable monitoring device.

Local and remote power monitoring with accuracy of +/- 1% (ANSI & IEC Standards).

Environmental monitoring with the addition of optional sensors.

High Temperature Grade 60°C for high temperature environments.

Flexibility to meet a broad range of requirements, with a variety of electrical and receptacle configurations available.

Simple and quick installation in all standard racks or cabinets with included mounting brackets.

TAA compliant.

The LCD touchscreen of the IMD-5M auto-orients for both vertical and horizontal units.

Enhanced with Secure Boot, the Hardware key and Firmware key must match to boot up.

When connected with another rPDU via a redundant power cable, the IMD-5M remains powered when the rPDU loses power.

Print Download Email

VP4N32A0

Product Overview

Capacity: 30A

Input Voltage Range: 208V

Output Voltage Range: 208V

Output Options: (12) C13 / (4) C19

Location: Rack

Management

Listings: RoHS, UL & c-UL Listed 60950, FCC Part 15 Class A
