Product Model

NetSure 800 Series DC Power System

NetSure 802 DC Power System
The NetSure 800 series high-density power systems offer the increased flexibility of a cabled plant in centralized or distributed architecture systems. 5800 watt rectifiers deliver up to 16,800 amps of power at -48 VDC. Individual power and distribution bays may be configured to meet any application requirement. These NetSure systems are designed to support wireless and wireline applications including, central offices, MTSOs, data centers and head-ends.
Quick Access
Get Brochure Get Manual
Technical Specifications
NetSure 802 DC Power System
Download PDF Send to Email
Product Overview
Power Capacity
1 GW
Current Capacity
20,000 A
System Type
Power Bay
Input
Input Voltage, Nominal
208 VAC to 480 VAC; three phase
Input Voltage, Operational
408-528 VAC to 176-264 VAC
Equipment Dimensions (H x W x D)
Combo Bay List 1 and List 11 93.5" x 24" x 30", 830 lbs., Combo Bay List 2 and List 12 84" x 24" x 30", 830 lbs., AC Distribution Bay (PDSC): 84" x 1
Access
Front and rear
Output
Output Voltage, Nominal
48 VDC
Output Voltage, Operational
42.0 VDC to 58.0 VDC
Output Capacity
12,000 W rectifier
Peak Efficiency
96.1% (480 VAC), 95.7% (208 VAC)
Load Circuit Breakers / Fuses
TPS/TLS, TPL Fuses or GJ/218-Style breakers
Environmetal & Standard Compliance
Control and Monitoring
MAC controller with optional monitor LMS1000

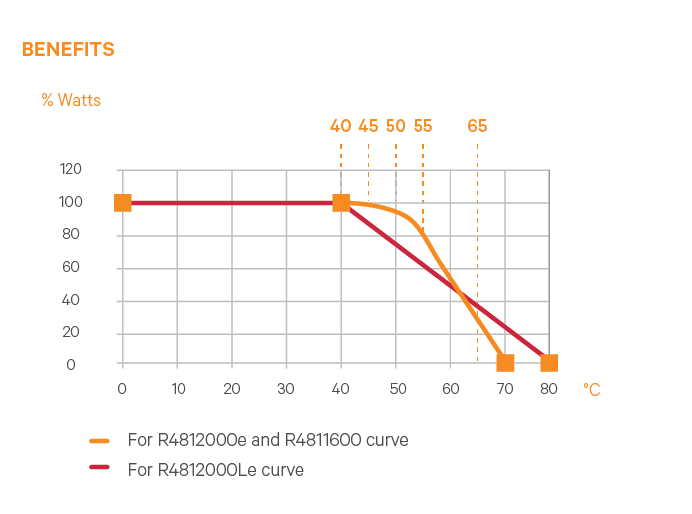

Operating Temperature
0 °C to +40 °C (+32 °F to +104 °F)
Safety Compliance
UL Listed (UL1801), CSA 22.2 (No. 225), c UL, NEBS Level 3
Brochures and Data Sheets
Software
Technical Specifications

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.

NetSure 802 DC Power System

Benefits

Free up floor space with a design that delivers power conversion, distribution, and control and monitoring in a single bay
Significantly reduce cabling and installation costs with an optional integrated internal DC bus
Integrated AC Power Distribution Service Cabinet (PDSC) enables you to dedicate existing cabling and breakers to a single rectifier

Features

Up to 20,000 amp plant capacity in a compact footprint
2000 amp rectification plus distribution in single bay

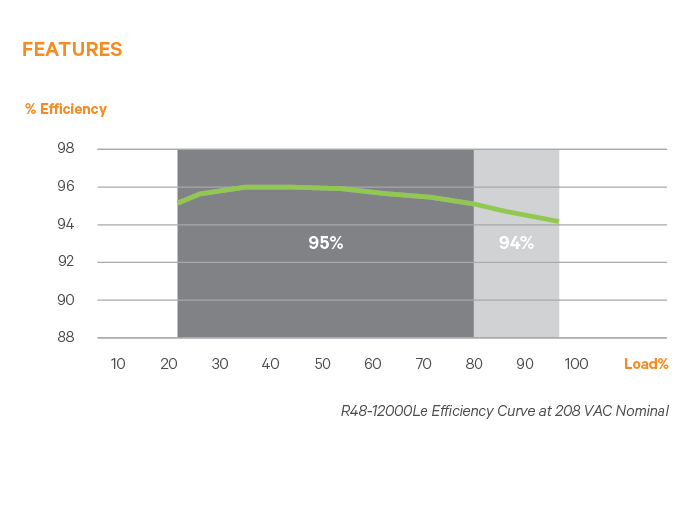

Rectifier efficiency over 96%
Built-in automatic monitoring for all distribution devices
Internal/external equipment monitoring
Protected bulk AC service feeds with 22 or 65 kAIC breakers
Remote access using Ethernet (Telnet, web pages, SNMP and TL1)
Supports distributed and bulk plant architectures
NEBS Level 3 compliance; UL Listed to UL 1801
