Product Model
NetSure 7000 Series for Access / Edge

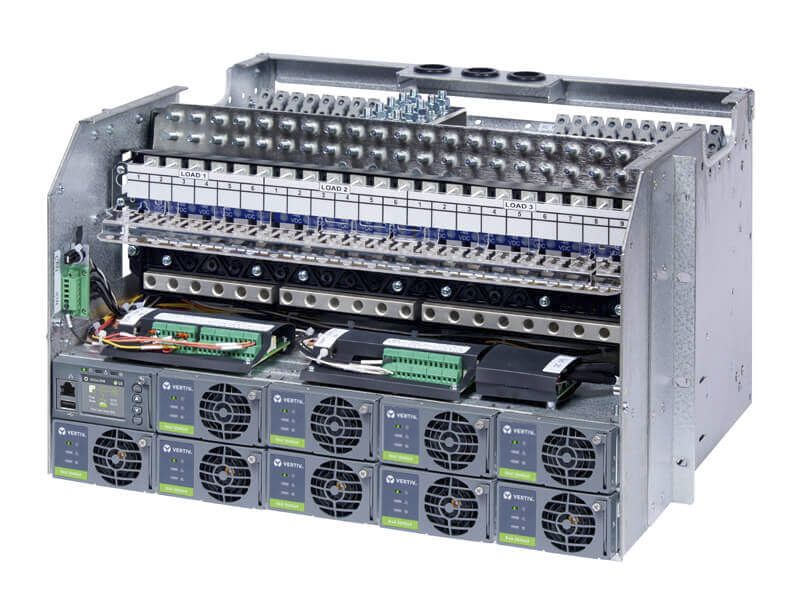

NetSure 7100 Compact 582137100101-106 (19")
NetSure 7100 Compact systems are designed for rapid deployment in telecom access network applications requiring a reliable and high density power supply up to 900 A at -48 VDC. The high operating temperature (up to 900 amps at +65°C) in conjunction with high operational efficiency has a positive impact on climate system dimensioning in outdoor enclosure applications.
Quick Access
Specifications
Technical Specifications
NetSure 7100 Compact 582137100101-106 (19")
- Product Overview
- Power Capacity
- 24 kW
- Current Capacity
- 500 A
- System Type
- Rack or cabinet mount
- Input
- Input Voltage, Nominal
- 100 to 240 VAC
- Input Voltage, Operational
- 120/208/240 VAC, single phase (operational)
- Input Connections
- Terminal block (up to 6 AWG) for individual rectifier feed
- Access
- Front and rear for installation, Front for operation and maintenance
- Output
- Output Voltage, Nominal
- -48 VDC
- Output Capacity
- 350 A @ +65 °C; 500 A @ +40 °C
- Load Circuit Breakers / Fuses
- (21) (6 on Load 1 bus, 6 on Load 2 bus, 9 on Priority bus)
- Physical Characteristics
- Weight
- 19.1 to 24.5 kg
- Height
- 6-8U (266 to 347 mm)
- Width
- 483 mm
- Depth
- 395 to 420 mm
- Environmetal & Standard Compliance
- Operating Temperature
- -40°C to +65°C (-40°F to +149°F)
- Safety Compliance
- UL 62368 Recognized
Software
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
NetSure 7100 Compact 582137100101-106 (19")
Benefits
Optimize total cost of ownership with high-efficiency eSure™ rectifiers that deliver efficiency up to 96% over a wide operating range
Increase battery discharge time with priority or non-priority low voltage disconnect option
Support colocation with (3) separate load branches
Extend the life of your batteries with the available battery management tools
Keep your network power source secure with optional encrypted controller communication
Have peace of mind with this UL Listed and NEBS certified power system
Features
High power density system – 19”W, 6RU high (outdoor), 8RU high (indoor)
120VAC, 208VAC, 240VAC individual single phase input per rectifier
Priority based load shedding options
DC output surge protection
Remote communications via TCP/IP – security option available
Mounts in an enclosure or relay rack with optional battery trays
