Product Model
NetSure 5100 58870530036
Specifications
Technical Specifications
NetSure 5100 58870530036

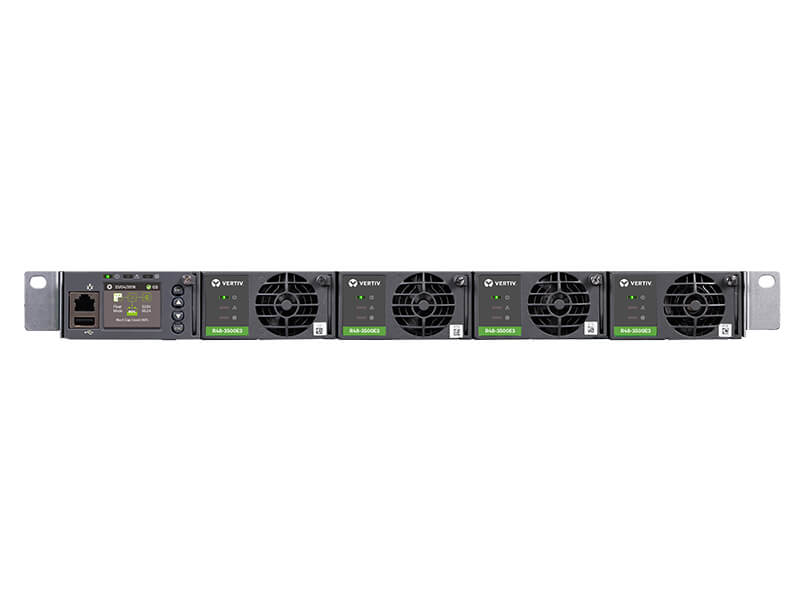

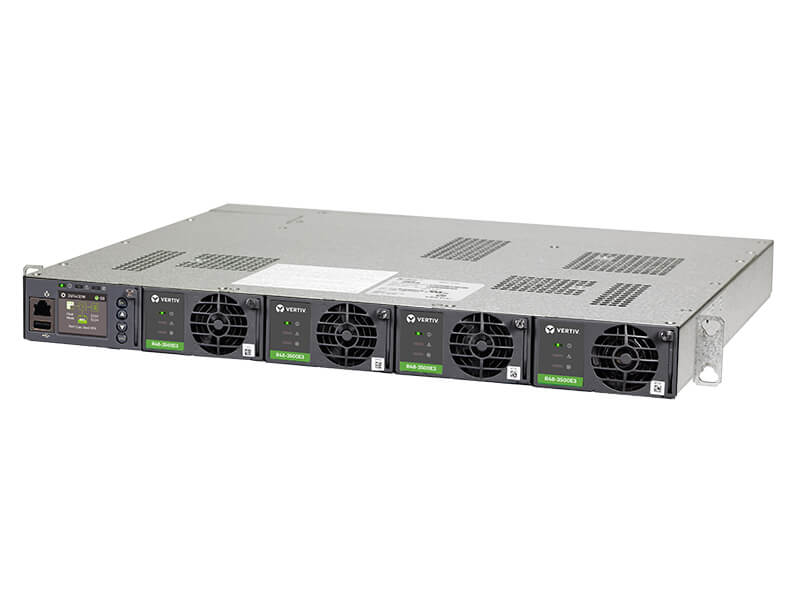

The NetSure 5000 Series, a compact -48 volt 160 A DC power solution, features an advanced control unit, up to (4) positions for 2000 W high-efficiency eSure rectifiers. The power system supports 19"W and 23"W rack mounting and is designed to work with a wide range of applications.
- Product Overview
- Power Capacity
- 8kW
- Current Capacity
- Up to 160A
- System Type
- Bulk subrack
- Input
- Input Voltage, Nominal
- 120VAC, 208VAC, 240VAC
- Input Voltage, Operational
- 85 VAC to 300 VAC
- Input Connections
- Molex cords
- Equipment Dimensions (H x W x D)
- 1RU H x 19"W X 15"D
- Access
- Front for Control, Rear for AC IN and DC Out
- Output
- Output Voltage, Nominal
- -48VDC
- Output Voltage, Operational
- -42 VDC to 58 VDC
- Output Capacity
- 160A
- Peak Efficiency
- 96.2%
- Environmetal & Standard Compliance
- Control and Monitoring
- NCU Controller
- Operating Temperature
- -40C to 65C
- Safety Compliance
- UL 60950 Recognized
- EMC Compliance
- FCC Class B
Brochures and Data Sheets
- NetSure 5100 Data Sheet
- 582137100 NetSure 5100 Ordering Guide
- Distributed Antenna System Solutions (DAS)
- Small NetSure Battery Cabinets Data Sheet
- NCU Controller Data Sheet
- R48-2000e3 eSure Rectifier Data Sheet
- Vertiv™ NetSure™ DC Power Services Maintenance Data Sheet
- Vertiv™ NetSure™ DC Power Services Test & Turn-Up Data Sheet
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Benefits
Minimize total cost of ownership with high efficiency eSure rectifiers
Reduce the need for specialized cooling with high temperature operation
Deploy the power system where 120VAC is the only input option
Keep your network power source secure with encrypted controller communication
Extend the life of your batteries with the available battery management tools
Achieve energy savings with ECO mode, even at low loads
Have peace of mind with this UL and NEBS power system
Minimize installation time and drive planned network conformity with custom configuration files
Reduce your off-grid generator runtime with solar / hybrid input
Optimize your battery capacity with priority and non priority load shedding
Solar / hybrid capability – reduces grid dependency
Features
High efficiency – 96.2% efficient eSure rectifiers
Wide operating temperature range – rectifiers function at -40 °C to +80 °C (up to +65 °C without de-rating)
Selectable AC input - 120VAC, 208 to 240 VAC
Supports Ethernet, SNMP V2 & SNMP V3, ModBus and RS485 communication interfaces
Battery management capability
ECO energy savings mode
NEBS Level 3 compliance and UL Listed
Custom configuration file capability
Solar / hybrid capability
Up to two disconnect levels (LVD)
