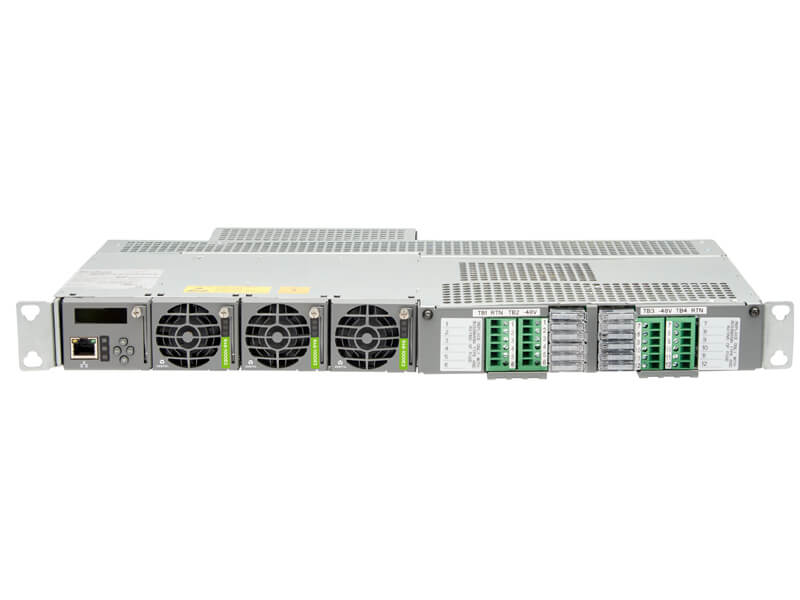

NetSure 2100 Series
The NetSure 2100 Series is designed for wireless access and customer premise applications offering unmatched temperature performance and high power density.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Telecom
NetSure 2100 Series
The NetSure 2100 Series is designed for wireless access and customer premise applications offering unmatched temperature performance and high power density.
- Telecom
Specifications
Technical Specifications
NetSure 2100 Series
NetSure DC Power systems from Vertiv offer extremely low failure rates, as well as low total cost of ownership, and are designed to work with a wide range of applications. The 1000 W eSure rectifier delivers peak system efficiency above 95%. Maximum value is achieved by an advanced energy optimization function known as ECO mode, enabling significant energy savings even at low loads.
- Product Overview
- Power Capacity
- 3 kW
- Current Capacity
- 48 A
- System Type
- Subrack
- Input
- Input Voltage, Nominal
- 120, 208, 240 VAC
- Output
- Output Voltage, Nominal
- -48 VDC
- Physical Characteristics
- Weight
- 5
- Height
- 43.6
- Width
- 482
- Depth
- 279
- Environmetal & Standard Compliance
- Operating Temperature
- -40 °C to 70 °C (-40 °F to 158 °F)
- Safety Compliance
- UL 1801 Recognized
- EMC Compliance
- Conforms to FCC rules Part 15, Subpart B, Class B and EN55022 Class B, radiated and conducted
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
