Cybex SC 945XP Secure Desktop KVM
- Broadcast and Entertainment
Benefits
Features
Specifications
The Cybex™ SC900 secure desktop KVM switching portfolio offers a proven solution for guarding against cyber intrusion at the desktop. These switches are designed to meet the stringent specifications of the U.S. government and comply with the requirements of the latest NIAP protection profile for peripheral sharing devices version 3.0. These switches provide users with high resolution compatibility utilizing HDMI and DisplayPort technology as well as traditional DVI technology.
- Product Overview

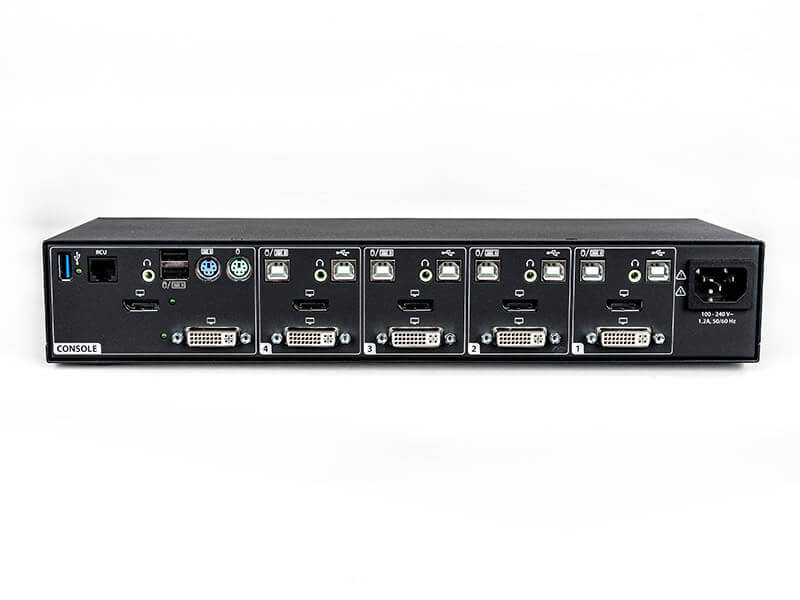

- Input Ports
- (4) DVI-I, single-link/dual-link & DisplayPort 1.2
- Video Connection
- Dual Head DisplayPort 1.2
- Video Resolution
- DVI dual-link 2560x1600 to UHD 4K
- Power Description
- Power Supply(s)
- 100-240V, 50-60 Hz AC
- Input Power (Maximum)
- 35W Max Internal
- Operational Conditions
- Operating Temperature
- 32° to 104°F (0° to 40°C)
- Humidity
- 0-80% RH, non-condensing
- Storage Temperature
- -4° to 140°F (-20° to 60°C)
- Physical Characteristics
- Weight
- 3.0
- Weight
- 1.5
- Height
- 1.7
- Height
- 42
- Width
- 13.7
- Width
- 342
- Depth
- 5
- Depth
- 125
- Miscellaneous
- Agency Approvals
- CE, RCM, FCC class B, VCCI, TUV US, TUV Canada
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
