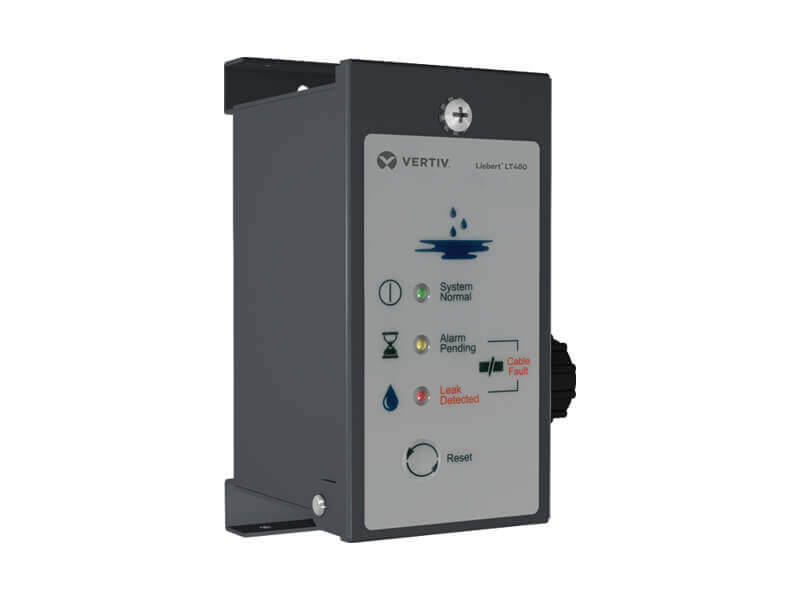

Liebert® LT460 Zone Leak Detection Sensors
Enhance data center protection with leak detection systems that quickly identify and report leaks before they become problems.
Quick Access
Specifications
Technical Specifications
Liebert® LT460 Zone Leak Detection Sensors
- Technical Specifications
- Product Line
- Leak Zone Detection
- Mounting
- Floor mount
- User Interface
- Dry contact
- Power Input
- 24 VAC, 50/60 Hz 120 mA, 3 VA
- Operating Environment
- 50 to 104 degree F
- Environmental Sensors
- Leak Detection Cable
- Output Relay
- Two
- Weight
- 2 lb
- Weight
- 0.9 kg
- Height
- 3.5 in
- Height
- 89 mm
- Width
- 5.35 in
- Width
- 136 mm
- Depth
- 3.23 in
- Depth
- 82 mm
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Liebert® LT460 Zone Leak Detection Sensors
Warranty : One Year Limited Warranty Against Defects in Material and Workmanship.
Benefits
Flexibility
Dual output relays can signal to a local alarm panel, a remote building management system, or to Liebert® SiteScan™ Web
Selectable alarm delays allow reporting customization.
Perimeter sensing or serpentine coverage of small area
Features
Zone leak detection sensor
Monitors up to 100 feet of leak detection cable
Reports to local or centralized monitor panels
Installs easily
