Benefits
Features
Specifications

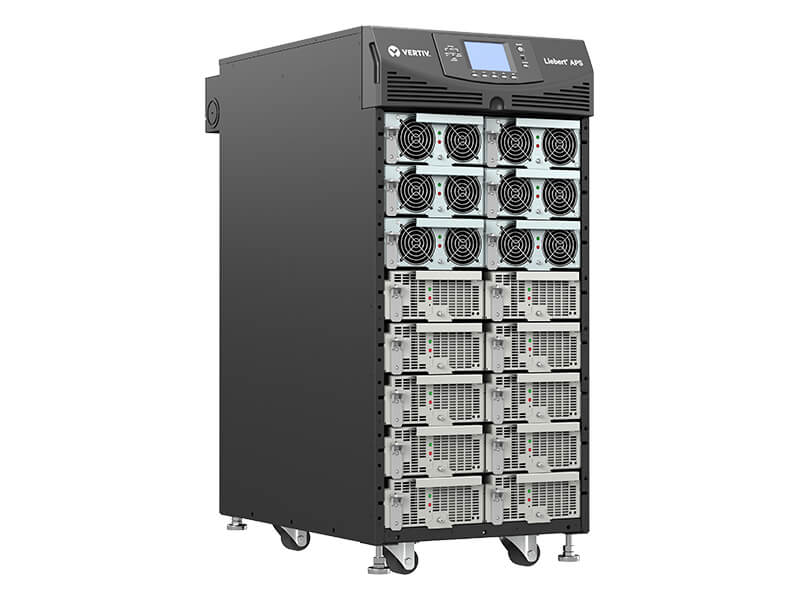

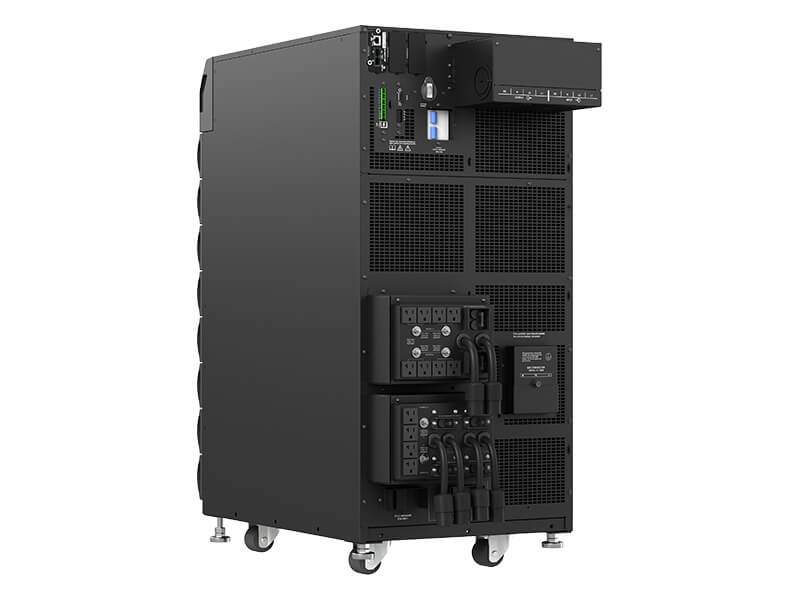

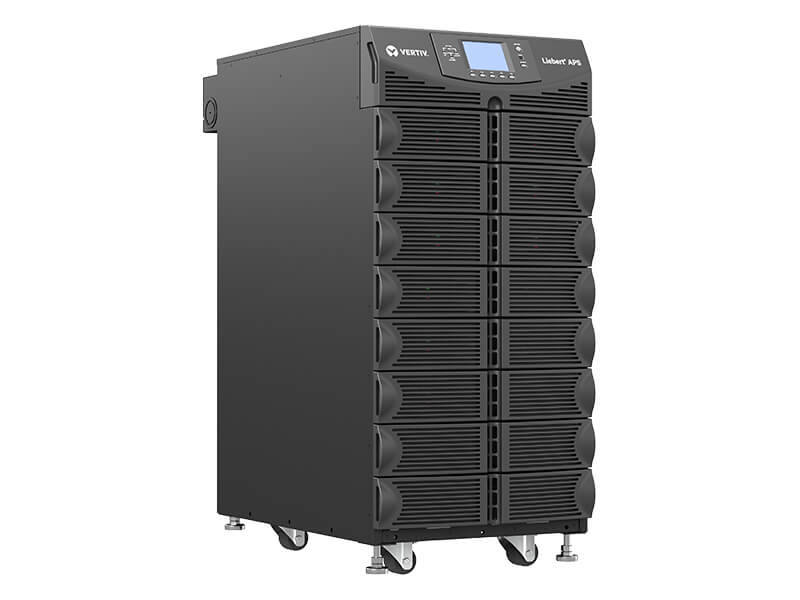

The Liebert APS is a modular, single phase output UPS, with both single and three phase input options to provide both high availability and flexibility. The Liebert APS adapts efficiently and effectively to both immediate and evolving power requirements, offering capacity on demand with flexible power modules which allow capacity upgrades in 5 kVA/4.5kW increments up to 20 kVA N+1.
- Operational Conditions
- Operating Temperature
- 0°C - 40°C (32°F - 104°F)
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Find Your Area Contact
Products Support Contacts
Change
AS5 & AS6 Series APS Performance Tables
|
Model |
Power Capacity |
Scalable To |
Input |
Output |
Full-Load |
Half-Load |
|
AS5A0NCUGNNXLKB |
5kVA / 4.5kW |
15 / 13.5 |
Hardwire (L-L-N-G) |
Hardwire |
5.0 |
15 |
|
AS5A0NCVGNNXLKB |
5kVA / 4.5kW |
15 / 13.5 |
Hardwire (L-L-N-G) |
Hardwire |
15 |
40 |
|
AS5B0NCVGNNXLKB |
10kVA / 9.0kW |
15 / 13.5 |
Hardwire (L-L-N-G) |
Hardwire |
5.0 |
15 |
|
AS6A0NCVGNNXLKB |
5kVA / 4.5kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
15 |
40 |
|
AS6B0NCVGNNXLKB |
10kVA / 9.0kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
5.0 |
16 |
|
AS6B0NCWGNNXLKB |
10kVA / 9.0kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
10 |
27 |
|
AS6B0NCYGNNXLKB |
10kVA / 9.0kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
21 |
53 |
|
AS6C0NCWGNNXLKB |
15kVA / 13.5kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
5.0 |
16 |
|
AS6C0NCJGNNXLKB |
15kVA / 13.5kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
16 |
41 |
|
AS6D0NCXGNNXLKB |
20kVA / 18.0kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
5.0 |
16 |
|
AS6D0NCJGNNXLKB |
20kVA / 18.0kW |
20 / 18.0 |
Hardwire (L-L-N-G) |
Hardwire |
10 |
27 |
Notes
- N+1 Power Redundancy can be achieved on any standard configuration by purchasing an extra power module.
- Models 10kVA and up can be configured to N+1 redundancy with a 5kVA/4.5kW De-rate to unit capacity.
- Scalable Runtime solutions are available, for details please contact your local Vertiv™ office and design your own solution with an expert on the product
