R48-2000C2-6
Specifications
Technical Specifications

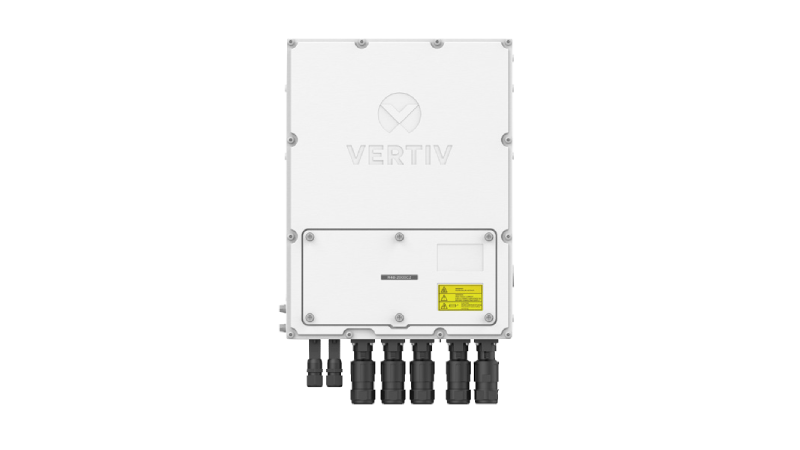

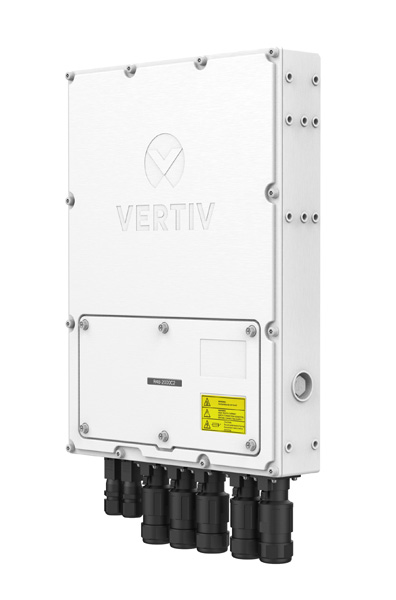

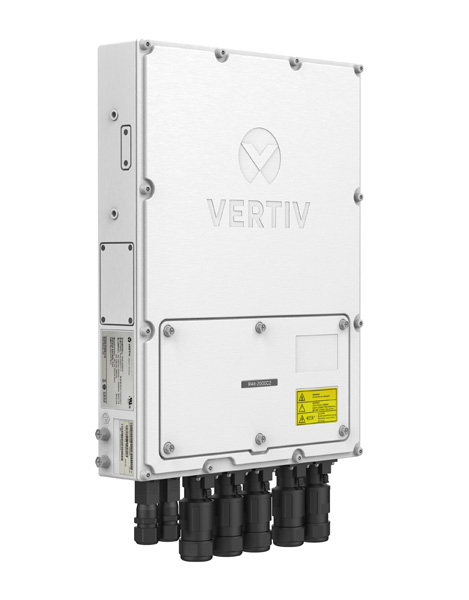

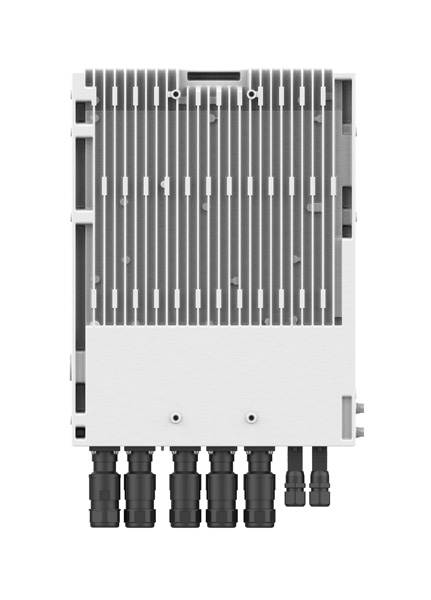

R48-2000C2-6
The high efficiency Netsure™ IPE Series reduces power consumption and lowers operating costs while delivering superior performance and uncompromised reliability.
- Input
- Input Voltage, Operational
- 85 VAC to 300 VAC
- Input Connections
- Quick Connectors
- Equipment Dimensions (H x W x D)
- 400x 300 x 62 mm / 15.7 x 11.8 x 2.4 inches
- Access
- Front access panel
- Output
- Output Voltage, Operational
- -42 to -58 VDC
- Output Capacity
- 2000 W
- Peak Efficiency
- >93% at 100 VAC input, >96.3% at 230 VAC input
- Physical Characteristics
- Options
- Pole or wall mounting in flush or flag position
- Weight
- 9.5 kgs
- Height
- 400 mm
- Width
- 300 mm
- Depth
- 62 mm
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
