제품 모델

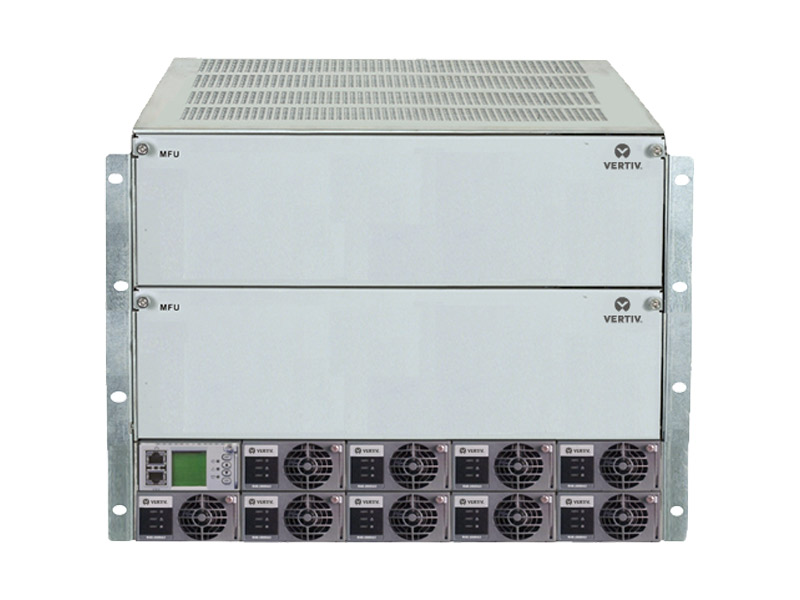

Netsure 531 A91
The NetSure 531 A91 series embedded high frequency switch mode power supply system was designed based on its years of experiences in development and running to meet the need of to deliver reliable and uninterruptible DC power supply for the LTE in-building solutions, FTTx broadband multi-solutions, macro station and outdoor cabinet.
적합한 용도:
- Telecom
특징
Great savings in installation cost due to its small size and embedded installation.
Wide input voltage range (85Vac to 300Vac), strong ability in adapting power grid.
Rectifier working temperature range: -40 +80°C (full load output if the range is -40°C +55°C, derating output if exceeding 55°C).
Perfect lightning protection at AC side, DC side and signal side.
Efficiency of rectifier is above 96%, efficiency of system is above 95%.
Battery management, which prolongs the working life of battery.
Provide multiple communication ports such as RS232, Ethernet port, dry contacts, etc, for flexible networking to achieve remote monitoring.
사양
Netsure 531 A91
- Product Overview
- 전력량
- 2 kW - 18 kW
- 전류 용량
- 42 A - 375 A
- 시스템 유형
- Subrack
- Input
- 입력 전압, 공칭
- 200 VAC - 250 VAC
- Input Voltage, Operational
- 85 VAC - 300 VAC
- Equipment Dimensions (H x W x D)
- Subrack: 356 mm x 483 mm x 310 mm, Rectifier: 41 mm x 84.5 mm x 252.5 mm
- Access
- Front Access
- Output
- 출력 전압, 공칭
- 48 VDC
- Output Voltage, Operational
- -42 VDC to -58 VDC
- Output Capacity
- Rectifier: 2000 W (max up to 9 units)
- Peak Efficiency
- Rectifier: 96.2%
- Load Circuit Breakers / Fuses
- Circuit Breakers
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- Circuit Breakers
- 무게(파운드/kg)
- Subrack: ≤40 kg, Rectifier: 1.13 kg
- 세로(인치/mm)
- 356 mm
- 가로(인치/mm)
- 483 mm
- 깊이(인치/mm)
- 310 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- NCU controller with remote access via web browsers, TCP/IP & SNMP as standard
- Operating Temperature
- -40 to 80°C, Derating from 65°C
- Safety Compliance
- UL 60950-1, EN 60950-1, IEC 60950
- EMC Compliance
- ETSIEN300386,Class B; FCC CFR47 Part 15, Class B; EN55022, Class B. CISPR22, Class B; Telcordia GR-1089-CORE issue 6.
