Vertiv™ Liebert® GXT5 UPS, 3,000-20,000VA 208VAC UPS
10,000 VA / 10,000 W, 208/120VAC (user-configurable)
GXT5-10KMVRT6UXLN
Specifications
Technical Specifications
GXT5-10KMVRT6UXLN
The full range of single-phase Vertiv™ Liebert® GXT5 UPS systems are easy to deploy with convertible rack/tower design that offers installation flexibility. Its gravity-sensing, color LCD provides a user-friendly interface for local configuration and management. Setup and integration are also easy with auto-detection of matching external battery cabinets for additional runtime solutions. With available network interface card (NIC), the Vertiv suite of management solutions including Trellis™ Power Insight and Vertiv™ LIFE™ Services are available to support your critical infrastructure. Designed for high availability and capacity, these compact UPS models with output power factors up to unity provide more usable power for connected equipment. High efficiency operation of this Energy Star® 2.0 certified UPS means you get protection while supporting sustainability. Increased efficiency is also achieved with Active ECO operating mode.
Warranty : Three-year advanced replacement, full-coverage factory warranty with optional extended warranty available.- Product Overview
- Power Rating
- 10,000 VA / 10,000 W
- Input Voltage
- Typical: 208VAC / Range: 176-280VAC
- Output Voltage
- 208/120VAC (user-configurable)
- Efficiency
- Up to 98% Active ECO Mode; up to 95% on-line mode

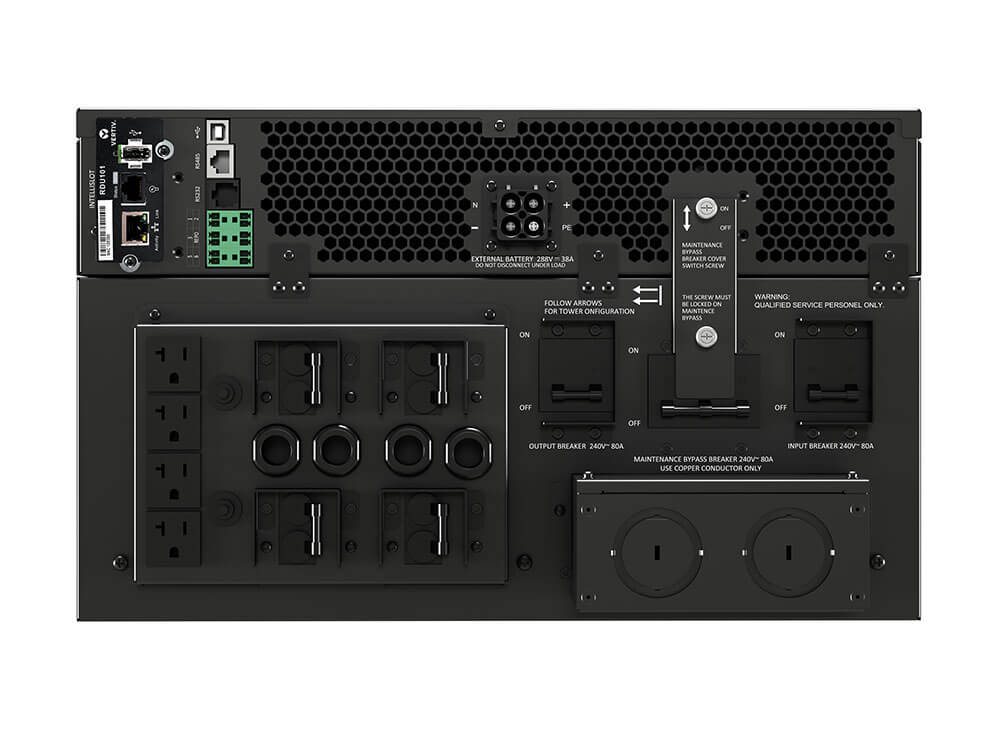

- Wiring
- Hardwired in/out; Optional PODs available
- Interfaces/Ports
- Interface Options
- Factory pre-installed Vertiv™ RDU101 SNMP/Webcard, USB, RS485, RS232, terminal block, external battery connector
- Protocols
- SNMP and web management enabled with factory pre-installed Vertiv RDU101 communications card; serial connection for out-of-band management
- Control Panel
- Full-color graphic LCD with gravity sensing orientation, provides insight to UPS status for easy installation, configuration and operation
- Operational Conditions
- Operating Temperature
- +32 to +104 °F (0 to 40 °C)
- Miscellaneous
- Listings
- ENERGY STAR® 2.0 certified, UL1778, c-UL listed, RoHS2, REACH
- Topology
- On-line double conversion UPS; flexible rack/tower form factor
