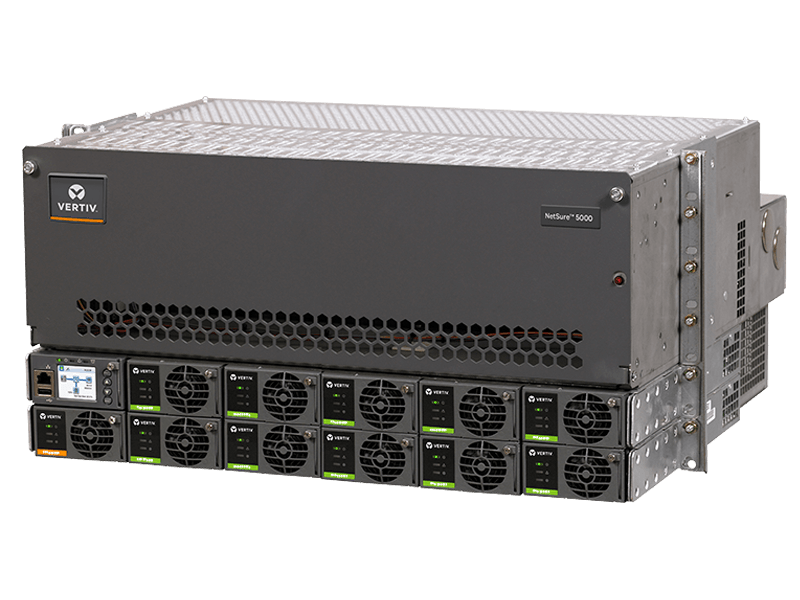

NetSure 5000 Series
Discretely power critical infrastructure at the edge of your network with optimized management, security, and control. This series of flexible DC power systems is designed for wireless access and fixed network applications offering unmatched temperature performance and high power density.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Telecom
NetSure 5000 Series
Discretely power critical infrastructure at the edge of your network with optimized management, security, and control. This series of flexible DC power systems is designed for wireless access and fixed network applications offering unmatched temperature performance and high power density.
- Telecom
Specifications
|
NetSure 5100 582137100
|
||||||||
|---|---|---|---|---|---|---|---|---|
| 18-28.8kW / 1.5-19.2kW | 40-600A / 50-400A | -48 VDC, +24 VDC, -58 VDC | Single phase: 120VAC, 208VAC to 240VAC | Standard system | 8.75" | 19" or 23" | 23.04" with batteries | Up to 600 lbs. |
| See more product information | ||||||||
|
NetSure 5100 582137200
|
||||||||
| 2-7.2kW | 40-150A | -48VDC | Single phase: 120VAC, 208VAC to 240VAC | Integrated system | Up to 5.25" | 19" or 23" | 14.7" | Up to 48 lbs. |
| See more product information | ||||||||
|
NetSure 5100 58870530036
|
||||||||
| 8kW | Up to 160A | -48VDC | 120VAC, 208VAC, 240VAC | Bulk subrack | 1 RU | 19" or 23" rack | 15" | 25 lbs. |
| See more product information | ||||||||
|
NetSure 512 582137000 up to 525A
|
||||||||
| 18-28.8kW / 1.5-19.2kW | 40-600A / 50-400A | -48 VDC, +24 VDC, -58 VDC | Single phase: 208VAC to 240VAC | Two row system | 15.75" to 22.75" | 27" | 16" | Up to 550 lbs. |
| See more product information | ||||||||
|
NetSure 512 582137000 up to 100A
|
||||||||
| 2-4.8kW / 1.5kW | 40-100A / 50A | -48VDC, +24VDC | Single phase: 208VAC to 240VAC | Single row system | 8.75" | 23" | 14.25" | Up to 150 lbs. |
| See more product information |
Benefits
Features
- NetSure 5100 Data Sheet
- 582137200 NetSure 5100 Ordering Guide
- 582137100 NetSure 5100 Ordering Guide
- Distributed Antenna System Solutions (DAS)
- Small NetSure Battery Cabinets Data Sheet
- DC Power Pre-Quote Form
- Vertiv™ NetSure™ DC Power Services Maintenance Data Sheet
- Vertiv™ NetSure™ DC Power Services Test & Turn-Up Data Sheet
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
