Vertiv™ Liebert® GXT5 Lithium-Ion UPS 5,000 - 10,000 VA

The Vertiv™ Liebert® GXT5 Lithium-Ion double-conversion online UPS provides the highest level of power conditioning and power protection for critical business IT systems such as network equipment and business servers. This ensures that your mission-critical systems and applications are protected in the event of any utility power problems such as power surges or a complete loss of power. The Liebert® GXT5 UPS protects against the widest range of power problems and seamlessly switches to battery backup if the quality of the input power is outside of acceptable operating levels.

Find Sales Contact Get Brochure Get Manual

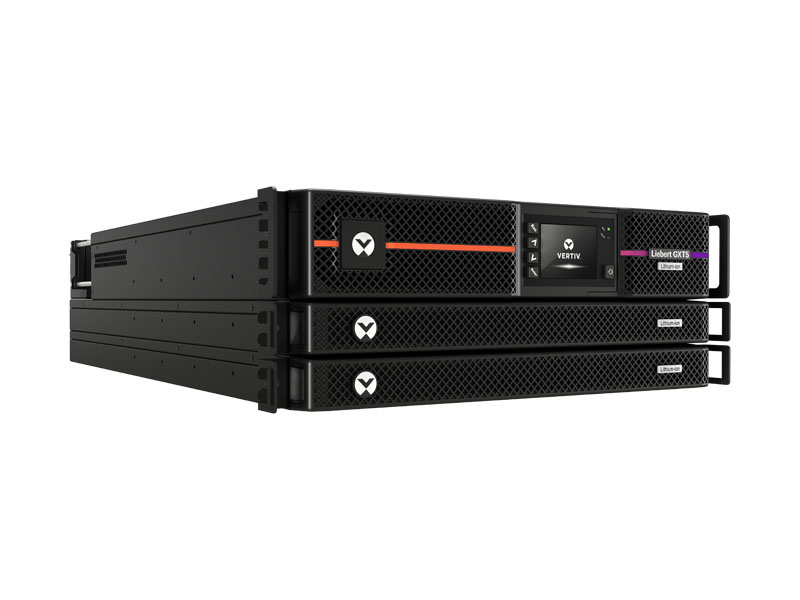

Vertiv™ Liebert® GXT5 Lithium-Ion UPS 5,000 - 10,000 VA Image

Key Benefits

Lowest total cost of ownership over the lifetime of the UPS. The expected useful life of the Lithium-Ion batteries is up to 3 times that of VRLA batteries which translates into fewer battery replacements over the life of the UPS.

Lithium-Ion battery technology delivers more runtime and faster recharge time, and offers better performance at higher temperatures and supports up to 10 times more discharge cycles compared to standard VRLA batteries.

The internal UPS battery offers industry-leading runtimes (up to 14 minutes at full load) to ensure availability of critical applications during an unexpected power loss.

Certified to meet industry UPS and lithium-ion standards such as UL 1778, UL 1973, and UL 1642, which ensures it's safe to use in your critical IT environments.

Hot-swappable, user replaceable batteries allow you to easily replace the batteries, if needed, without disrupting power to the connected equipment.

Standard 5-year warranty provides peace of mind your investment is protected.

Best Suited For:

Banking, Financial and Insurance
Education
Government
Healthcare
Manufacturing
Retail and Wholesale

Warranty: Standard 5-year warranty including both electronics and batteries.

Product Family

Vertiv™ Liebert® GXT5 Lithium-Ion UPS 5,000 - 10,000 VA

Find Sales Contact Get Brochure Get Manual

Key Benefits

The internal UPS battery offers industry-leading runtimes (up to 14 minutes at full load) to ensure availability of critical applications during an unexpected power loss.

Certified to meet industry UPS and lithium-ion standards such as UL 1778, UL 1973, and UL 1642, which ensures it's safe to use in your critical IT environments.

Hot-swappable, user replaceable batteries allow you to easily replace the batteries, if needed, without disrupting power to the connected equipment.

Standard 5-year warranty provides peace of mind your investment is protected.

Best Suited For:

Banking, Financial and Insurance
Education
Government
Healthcare
Manufacturing
Retail and Wholesale

Warranty: Standard 5-year warranty including both electronics and batteries.

Vertiv™ Liebert® GXT5 Lithium-Ion online UPS protects critical IT applications against outages and power disturbances. It offers highest level of power conditioning and battery backup in server rooms, network closets, and other edge or distributed IT locations. Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as VRLA batteries reducing maintenance, labor, and replacement costs (lower TCO). Hot-swappable, user-replaceable batteries increase the useable life of the UPS.

Model Specifications Overview

Print Download Email

GXT5LI-5000MVRT3UXLN
Models	Power Rating	Input Voltage	Output Voltage	Wiring	Height	Width	Depth	Weight
GXT5LI-5000MVRT3UXLN	5000VA / 5000W	120V/240V	208V (120V/240V (User-Configurable))	NEMA L14-30P	5.2 in	16.9 in	35 in	104.9 lbs
See more product information
GXT5LI-6000MVRT3UXLN
GXT5LI-6000MVRT3UXLN	6000VA / 6000W	120V/240V	208V (120V/240V (User-Configurable))	Hardwired (L1, L2, N, G)	5.2 in	16.9 in	35 in	100 lbs
See more product information
GXT5LI-8000MVRT4UXLN
GXT5LI-8000MVRT4UXLN	8000VA / 8000W	120V/240V	208V (120V/240V (User-Configurable))	Hardwired (L1, L2, N, G)	6.9 in	16.9 in	35 in	156.3 lbs
See more product information
GXT5LI-10KMVRT4UXLN
GXT5LI-10KMVRT4UXLN	10000VA / 10000W	120V/240V	208V (120V/240V (User-Configurable))	Hardwired (L1, L2, N, G)	6.9 in	16.9 in	35 in	156.3 lbs
See more product information
VEBCLI-192VRT1U
VEBCLI-192VRT1U		N/A	192V	N/A	1.7 in	17 in	31 in	48 lbs
See more product information

* To view a specific model product page click on the model name above.

Benefits

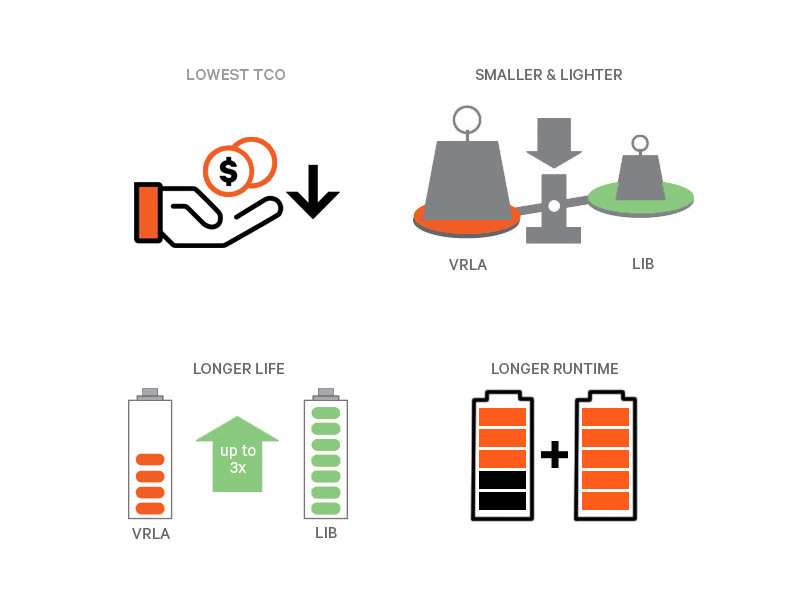

Superior Battery Technology: Lithium-Ion batteries require fewer battery replacements and last up to 3x as long as traditional VRLA batteries reducing maintenance, labor, and replacement costs (resulting in the lowest TCO). Internal batteries offer industry-leading runtime (up to 14 minutes at full load) to protect critical equipment during an unexpected power loss.

High Performance: Lithium-Ion battery technology offers better performance at higher temperatures, supports up to 10 times more discharge cycles, and delivers faster recharge times compared to VRLA batteries.

Easy Installation: Hot-swappable, user-replaceable batteries may increase the useable life of the UPS by allowing you to easily replace the batteries, if needed, without disrupting power to connected equipment.

Scalable Runtime: The UPS has an external battery connector, which is a scalable runtime solution for extended outage protection (Up to (8) VEBCLI-192VRT1U External Battery Cabinets).

Features

Lowest total cost of ownership; lithium-ion batteries last up to 3 times as long as VRLA batteries, resulting in fewer battery replacements saving time and money

5-years standard warranty on the UPS and batteries

Longer battery runtime and quicker battery recharge times to ensure availability of your critical applications

Unity Output Power Factor delivers more usable power, saving space and cost

High efficiency, up to 95% in double-conversion online mode to deliver energy savings

Advanced User-Friendly Color Graphic LCD with gravity sensing orientation for simple local UPS configuration and management

Flexible rack/tower convertible form factor

Input and output circuit breakers for additional protection of the equipment in the event of a worst-case failure

Remote Emergency Power Off (EPO) to turn off the UPS in the event of an emergency

Four (4) integrated programmable dry contacts for secure local UPS monitoring and management.

Liebert® IntelliSlot™ RDU101 network communications card included for remote monitoring, control and management of the UPS

Integrated Maintenance Bypass Cabinet (MBC) facilitates UPS service or replacement without having to disconnect or shutdown connected equipment.

Environmentally Friendly; RoHS and REACH compliant

Manuals

Brochures and Data Sheets

Software

Vertiv™ Liebert® GXT5 UPS Software and UPS Firmware Downloads

Warranties

Liebert® UPS Products 5-Year Limited Warranty

Drawings

Technical Specifications

Vertiv™ Equipment Protection Plan

Reports

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
