eSure Power Extend Converter, C48/58-1000

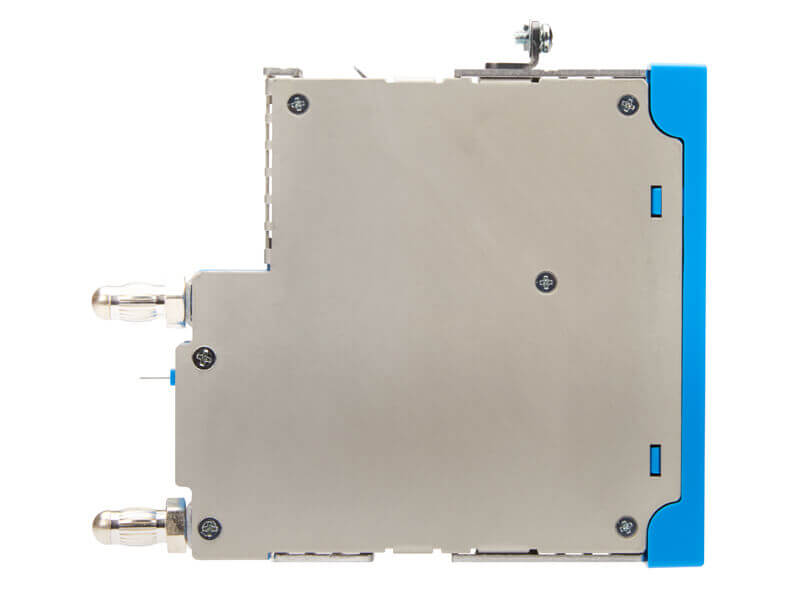

The eSure™ C48/58-1000 Power Extend Converter is a compact device that economically boosts voltage up to -58 VDC to support increasing power needs of remote radio heads on cell towers. The eSure C48/58-1000 plugs into an existing DC distribution panel in the same position as a single-pole bullet circuit breaker, conserving usable space.
Saved This Product to Your Dashboard
You just saved this product to your dashboard to view at a later time. You can easily remove the item from your dashboard when you no longer wish to have it saved.
Please login or create an account to save this for later
- Telecom
eSure Power Extend Converter, C48/58-1000
The eSure™ C48/58-1000 Power Extend Converter is a compact device that economically boosts voltage up to -58 VDC to support increasing power needs of remote radio heads on cell towers. The eSure C48/58-1000 plugs into an existing DC distribution panel in the same position as a single-pole bullet circuit breaker, conserving usable space.
- Telecom
Benefits
Features
Specifications
The eSure C48/58-1000 is equipped with an enable/disable switch, a bi-color LED indicator and an alarm contact. Test points are provided to monitor the output voltage and an integrated branch circuit rated protection device is included.
- Product Overview
- Power Capacity
- 1000 W
- Current Capacity
- 17.2 A
- System Type
- Converter
- Input
- Input Voltage, Nominal
- -48 VDC
- Output
- Output Voltage, Nominal
- -58 VDC
- Physical Characteristics
- Weight
- 0.45 kg
- Height
- 107.2 mm.
- Width
- 18.5 mm.
- Depth
- 109.7 mm.
- Environmetal & Standard Compliance
- Operating Temperature
- -40°C to +65°C / -40°F to +149°F
- Safety Compliance
- GR3108 Class 2, NEBS Level III, UL (pending)
- EMC Compliance
- FCC CFR 47 Part 15 (Class B conducted and radiated); Telcordia GR-1089-CORE Issue 6
- IM565391 Mounting Kit for NetSure 7000/700 Indoor Systems
- UM565050 C48/58-1000 eSure Power Extend Converter User Manual
- IM565460 Mounting Kit for NetSure 512 Outdoor Enclosure
- IM565649 Mounting Kit for NetSure 502 Systems
- IM60019000 Mounting Kit for NetSure 7100 Compact Systems
- eSure Power Extend Converter Calculator (Dec 2020)
- IM60017372 Mounting Kit for Vertiv 20-Position Breaker Panel
- IM565939 Mounting Kit for NetSure 5100 Systems (582137100)
- Video: eSure Power Extend Converter Animated Tour
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
