Product Model

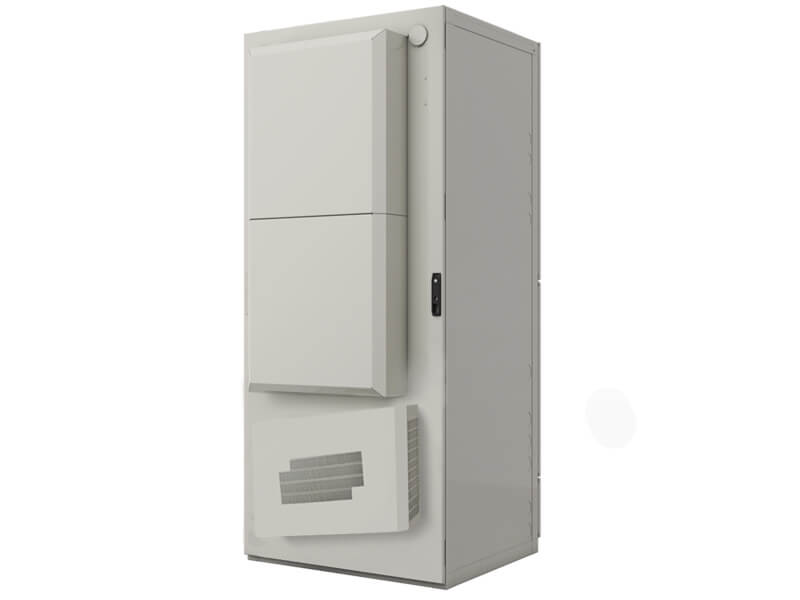

Vertiv XTE 601E, 84" Enclosure

This thermally controlled enclosure combines DC power, network electronics and battery backup in a single compartment to meet your macro cell site or C-RAN deployment needs. Electronics and batteries are kept at proper operating temperature by either a door mounted heat exchanger (HX) or an air conditioner, with two Thermal Electric Coolers (TECs) managing battery temperature on the HX version. An environmental controller maximizes cooling effectiveness, while minimizing energy usage and noise.

Get Brochure Get Manual
Best Suited For:
  • Telecom
Warranty: One-Year Limited Warranty Against Defects in Material and Workmanship

Benefits

Protect critical electronics and equipment from adverse environmental conditions
Maintain a cool operating environment with versatile thermal solutions
Quick site turn up with fully integrated, high capacity enclosure that integrates into your cell site with ease

Features

Door mounted heat exchanger or air conditioner options for thermal control
AC power input options available along with optional AC surge protection device
Optional ancillary chambers available for batteries and customer access electronics
Accepts NetSure DC power systems and third party equipment
Integrated or external distribution available with optional DC surge protection
Designed to meet Telcordia’s GR-487-CORE and UL Listed to NWIN 2416 requirements

Email
Vertiv XTE 601E, 84" Enclosure
HF
Model (Catalog Number)
84" Enclosure
Part type
Enclosure
Color
Off-white
Description
Includes heat exchanger and (2) TECs

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
