Product Model

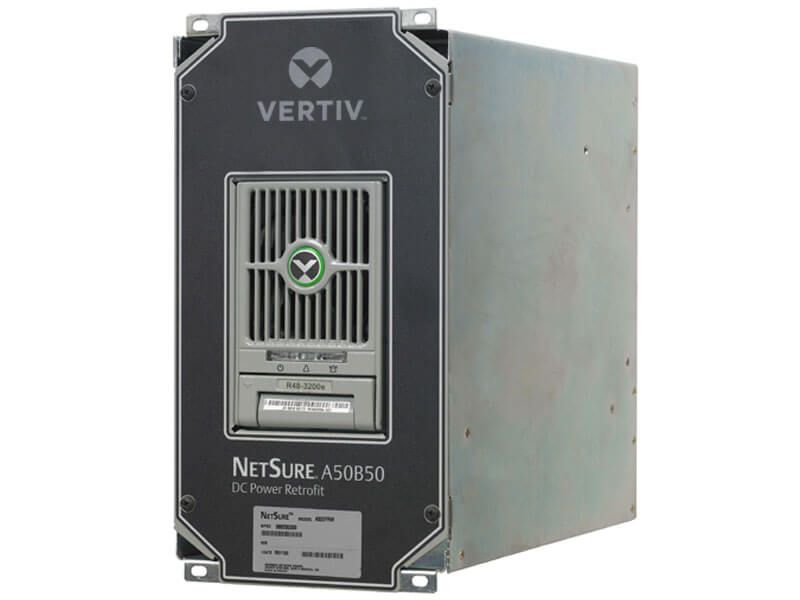

NetSure A50B50 Rectifier Retrofit
Specifications
Technical Specifications
NetSure A50B50 Rectifier Retrofit
- Product Overview
- Power Capacity
- 3500 W per unit
- Current Capacity
- 73 A per unit
- System Type
- Retrotfit
- Input
- Input Voltage, Nominal
- 208 VAC to 240 VAC
- Input Voltage, Operational
- 180 VAC to 264 VAC
- Input Connections
- Plug-in
- Equipment Dimensions (H x W x D)
- 12.1" x 6.31" x 13.7"
- Access
- Front for installation, operation and maintenance
- Output
- Output Voltage, Nominal
- -48 VDC
- Output Voltage, Operational
- 42.0 VDC to 58.0 VDC
- Output Capacity
- 3500 W (73 A @ 48 VDC)
- Peak Efficiency
- 96.5%
- Physical Characteristics
- Weight
- 5 kg
- Height
- 307.3 mm
- Width
- 160.3 mm
- Depth
- 348 mm
- Environmetal & Standard Compliance
- Control and Monitoring
- Compatible with original control board or replace with advanced NetSure controller features
- Operating Temperature
- -40 °C to +65 °C (-40 °F to +149 °F)
- Safety Compliance
- UL 1950 Recognized
- EMC Compliance
- FCC Class B
Brochures and Data Sheets
Software
Technical Specifications
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Benefits
Extend the life of legacy systems and improve efficiency to save cost
Keep your plant up and running during installation and maintenance with hot swappable modules
Compatible with or without original rectifiers in same system
Features
Plugs into existing rectifier slots without any electrical or mechanical adjustments to existing shelf or system
NetSure reliability improves mean time between failure (MTBF)
Enhanced controller features including single point adjustment and remote access via Ethernet
Enables connection to remote monitoring via SNMP and web
