NetSure 5000 Series
NetSure 5100 582137100
Discretely power critical infrastructure at the edge of your network with optimized management, security, and control.
This series of flexible DC power systems is designed for wireless access and fixed network applications offering unmatched temperature performance and high power density.
Quick Access
Specifications
Technical Specifications
NetSure 5100 582137100
- Product Overview
- Power Capacity
- 18-28.8kW / 1.5-19.2kW
- Current Capacity
- 40-600A / 50-400A
- System Type
- Standard system
- Input
- Input Voltage, Nominal
- Single phase: 120VAC, 208VAC to 240VAC
- Input Voltage, Operational
- Rectifier: (Single Phase) 85 VAC to 300 VAC, Solar Converter: 120 VDC to 420 VDC, DC-DC Converter: 41 VDC to 58.5 VDC
- Input Connections
- Molex for AC cords or hard wiring, terminal strip or breaker (solar)
- Equipment Dimensions (H x W x D)
- Distribution cabinet: 4U x 19" x 15" or 8U x 23" x 15", Module shelf: 1U x (19" or 23") x 15"
- Access
- Top or rear cabled with front and top access
- Output
- Output Voltage, Nominal
- -48 VDC, +24 VDC, -58 VDC
- Output Voltage, Operational
- Rectifier: -42 VDC to -58 VDC; Converter: +24 VDC to +28 VDC or -56 VDC to -58 VDC
- Output Capacity
- Up to 600 amps at -48 VDC plus redundancy; Up to 400 amps at +24 VDC or -58 VDC plus redundancy
- Peak Efficiency
- Rectifier: 96.2%; Converter: 95% (+24 VDC or -58 VDC)
- Load Circuit Breakers / Fuses
- 1-300 A E/M or E bullet nose breakers, 100-600 A E/M GJ Hybrid Panel Breakers, 3-100 A TPS/TLS fuses, 18/100 A to 15 A GMT fuses
- Physical Characteristics
- Battery Circuit Breakers / Fuses
- 1A to 300 A E/M or E breakers, 50A to 200A GJ Breakers, 3A to 100A TPS/TLS fuses
- Options
- Optional Battery Trays, SM-Temp, BAU, Relay racks
- Environmetal & Standard Compliance
- Control and Monitoring
- NCU with remote access via web browsers, TCP/IP & SNMP as standard
- Operating Temperature
- -40 °C to +65 °C ( 40 °F to +149 °F)
- Safety Compliance
- UL Listed (cUL)
Manuals
- [6-11]UM1M830BNA NCU Controller User Manual
- UM1R482000E3 eSure Rectifier User Manual
- IM582137100 NetSure 5100 Installation Manual
- UM582137100 NetSure 5100 User Manual
- [6-10]UM547490 SM-TEMP User Manual
- S48-2000e3 Solar Converter User Manual
- UM1C48582000P3 eSure Power Extend Converter User Manual
- IM588820200SK001 NetSure Battery Tray Kit Installation Manual
Brochures and Data Sheets
- NetSure 5100 Data Sheet
- NCU Controller Data Sheet
- R48-2000e3 eSure Rectifier Data Sheet
- C48/58-2000P3 eSure™ Power Extend Converter Data Sheet
- C48-24-1500 eSure Converter Data Sheet
- S48-2000e3 eSure Solar Converter Data Sheet
- Small NetSure Battery Cabinets Data Sheet
- Vertiv™ NetSure™ DC Power Services Maintenance Data Sheet
- Vertiv™ NetSure™ DC Power Services Test & Turn-Up Data Sheet
Technical Specifications
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
NetSure 5100 582137100
Benefits
Minimize total cost of ownership with high efficiency eSure rectifiers
Reduce the need for specialized cooling with high temperature operation
Deploy the power system where 120VAC is the only input option
Keep your network power source secure with encrypted controller communication
Extend the life of your batteries with the available battery management tools
Achieve energy savings with ECO mode, even at low loads
Have peace of mind with this UL and NEBS power system
Minimize installation time and drive planned network conformity with custom configuration files
Reduce your off-grid generator runtime with solar / hybrid input
Optimize your battery capacity with priority and non priority load shedding
Solar / hybrid capability – reduces grid dependency
Features

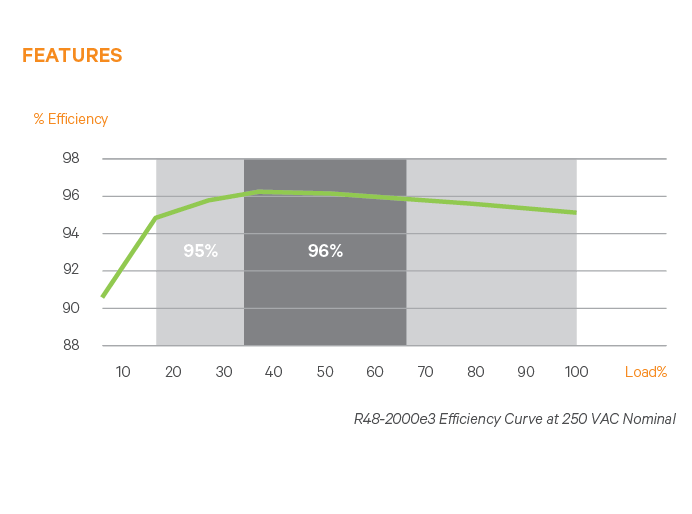

High efficiency – 96.2% efficient eSure rectifiers
Wide operating temperature range – rectifiers function at -40 °C to +80 °C (up to +65 °C without de-rating)
Selectable AC input - 120VAC, 208 to 240 VAC
Supports Ethernet, SNMP V2 & SNMP V3, ModBus and RS485 communication interfaces
Battery management capability
ECO energy savings mode
NEBS Level 3 compliance and UL Listed
Custom configuration file capability
Solar / hybrid capability
Up to two disconnect levels (LVD)
