Product Model
NetSure 2100 Series
Specifications
Technical Specifications
NetSure 2100 Series
NetSure DC Power systems from Vertiv offer extremely low failure rates, as well as low total cost of ownership, and are designed to work with a wide range of applications. The 1000 W eSure rectifier delivers peak system efficiency above 95%. Maximum value is achieved by an advanced energy optimization function known as ECO mode, enabling significant energy savings even at low loads.
- Product Overview
- Power Capacity
- 3 kW
- Current Capacity
- 48 A
- System Type
- Subrack
- Input
- Input Voltage, Nominal
- 120, 208, 240 VAC
- Output
- Output Voltage, Nominal
- -48 VDC
- Physical Characteristics
- Weight
- 5
- Height
- 43.6
- Width
- 482
- Depth
- 279
- Environmetal & Standard Compliance
- Operating Temperature
- -40 °C to 70 °C (-40 °F to 158 °F)
- Safety Compliance
- UL 1801 Recognized
- EMC Compliance
- Conforms to FCC rules Part 15, Subpart B, Class B and EN55022 Class B, radiated and conducted
Technical Specifications
*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
Benefits
Easy to deploy in small spaces with a compact-sized 19" wide shelf, less than 11" deep
Optimize total cost of ownership with >95% high-efficiency eSure™ rectifiers
Save CapEx and OpEx on climate systems in outdoor applications with rectifiers that operate from -40°C to +70°C
Reduce the need for costly site visits with intelligent remote access and monitoring over standard protocols
Features

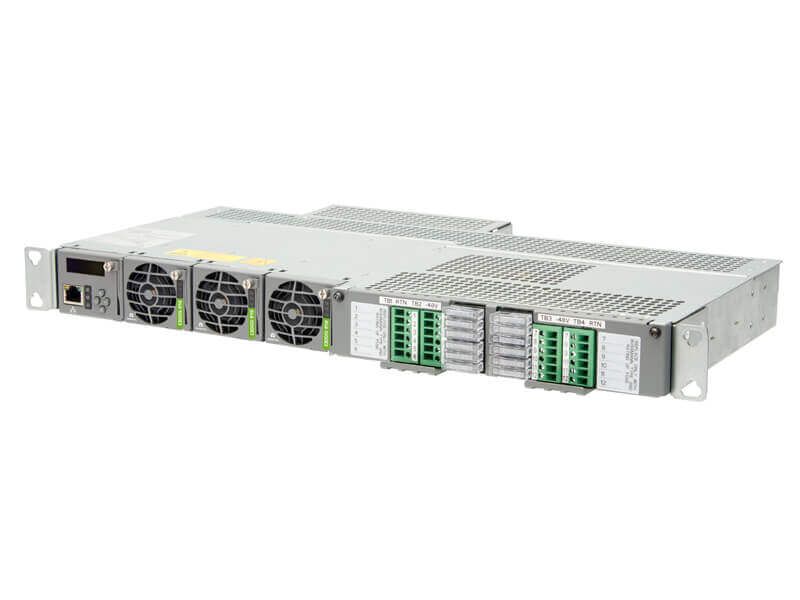

High density subrack delivers up to 3kW in 1U rack space
Wide operating voltage range, 85-300VAC
All breakers are accessible from the front side
Integrated distribution
Advanced intelligent battery management system
Built-in communication & dry contact ports that enable remote monitoring
