Product Family

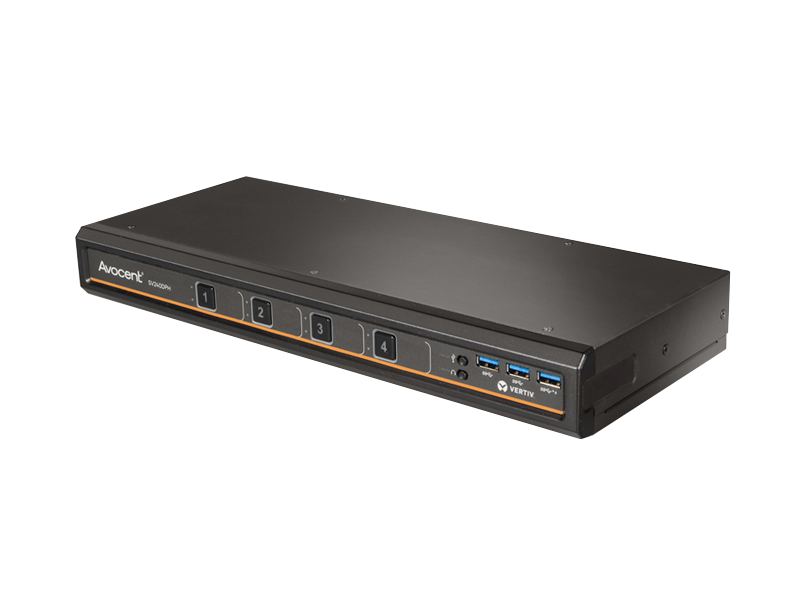

Avocent® SwitchView™ 200 Series Desktop KVM Switches

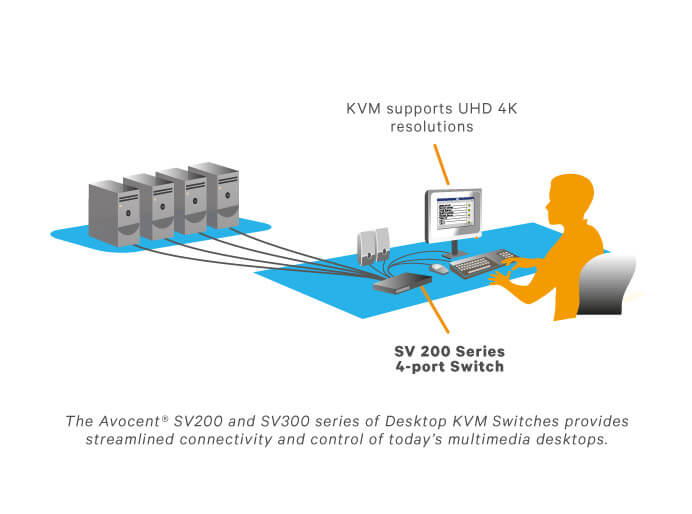

Avocent® Desktop KVM switches bring order to desktop chaos. Whether you have a business with limited IT resources or a department in a large organization, these KVM solutions simplify access to essential business systems. Each switch supports a wide range of peripherals and up to four different systems. By pushing a button, users gain instant access to multiple computers - all through a single monitor, keyboard and mouse.

Find Sales Contact Get Brochure Get Manual
Login to Save for Later
Best Suited For:
  • Education
  • Government
  • Healthcare
  • Military, Defense, Aerospace and Missile
  • Retail and Wholesale
Warranty: 2 Year Full Coverage Factory Warranty - Optional Extended Warranty Available

Model Specifications Overview
Avocent® SV240DPH KVM Switch
1 x DP / HDMI universal port   UHD 4K (3840x2160) @ 60Hz   1.7 in   5.0 in   13.7 in   3.0 lbs
Avocent® SV2160DPH KVM Switch
1 x DP / HDMI universal port   UHD 4K (3840x2160) @ 60Hz   3.5 in   8.8 in   17.2 in   10.8 lbs
Avocent® SV220 KVM Switch
DVI-I (HDMI and VGA with adapter)   UHD 4K - 3840 x 2160 @ 30 Hz (via DVI to HDMI)   1.4 in   7 in   2.4 in   1 lb
Avocent® SV220H KVM Switch
HDMI 1.4   UHD 4K - resolutions up to 3840 x 2160 @ 30Hz   1.4 in   7 in   2.4 in   1 lb
Avocent® SV240 KVM Switch
DVI-I (HDMI and VGA with adapter)   UHD 4K - 3840 x 2160 @ 30 Hz (via DVI to HDMI)   1.7 in   13.7 in   5 in   3 lbs
Avocent® SV220D KVM Switch
Display Port 1.2   UHD 4K - resolutions up to 3840 x 2160 @ 30Hz   1.4 in   7 in   2.4 in   1 lb
Avocent® SV240D KVM Switch
Display Port 1.2   UHD 4K - resolutions up to 3840 x 2160 @ 30Hz   1.7 in   13.7 in     3 lbs
Avocent® SV240H KVM Switch
HDMI 1.4   UHD 4K - resolutions up to 3840 x 2160 @ 30Hz   1.7 in   13.7 in   5 in   3 lbs

Benefits

With Avocent® KVM switches, you can:
Increase productivity with simple, rapid access to systems and peripherals
Gain true image reproduction and display flexibility with support for ultra HD systems and mobile devices
Reduce costs with fewer peripheral purchases and easier IT maintenance

Features

Access from two to four computers using a single keyboard, monitor and mouse
Managed copy and paste of files and text between sources
Mobile High-Definition Link (available on 4-port HDMI models) enables viewing of media from mobile devices on connected HDMI monitors
Support for DVI-I, HDMI 1.4 and DP1.2 in single and dual head models supporting high resolutions up to UHD 4K
Mouse and keyboard switching via emulation assures zero delay in switching time between connected sources
Easily switch audio and USB 3.0 (select models) peripherals independently of KVM
Three USB 3.0 ports on the front of the 240 KVMs enable easy connectivity to external USB devices, quick data transfer and high speed charging of mobile devices
