Product Family

Vertiv XTE 601E Series

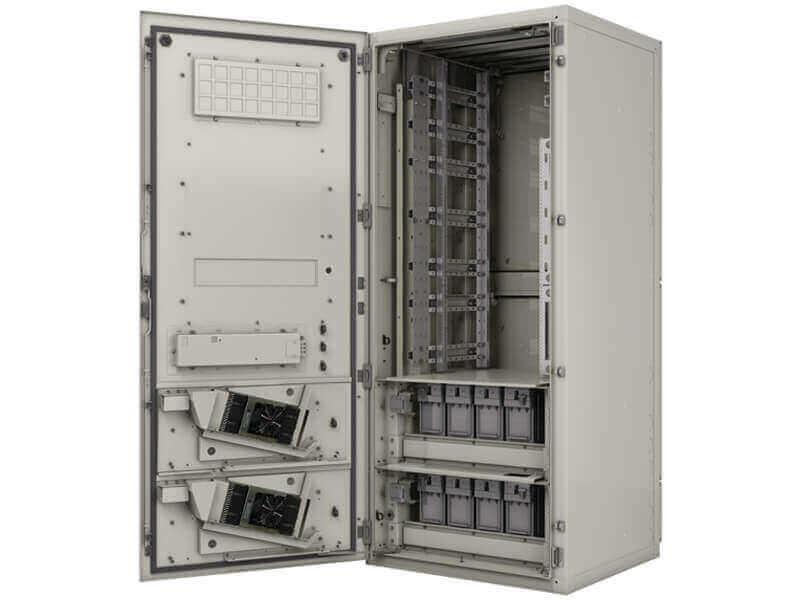

Designed to support C-RAN technology today while providing the flexibility to adapt to the 5G infrastructure needs of tomorrow. Streamline infrastructure at your site by consolidating electronics, power and batteries in a single enclosure.

Get Brochure Get Manual
Best Suited For:
  • Telecom
Warranty: One-Year Limited Warranty Against Defects in Material and Workmanship

Model Specifications Overview
Email
Vertiv XTE 601E, 84" Enclosure
84" Enclosure   F2017006   Enclosure   Off-white   Includes heat exchanger and (2) TECs   84"   32"   34"   1041
Vertiv XTE Sole Enclosure
Sole Enclosure   F2014021   Enclosure   Off-white   Accepts DC power, HX or HVAC, Ni-Cd or VRLA   48"   28"   28"   235

Benefits

Protect critical electronics and equipment from adverse environmental conditions
Maintain a cool operating environment with versatile thermal solutions
Quick site turn up with fully integrated, high capacity enclosure that integrates into your cell site with ease

Features

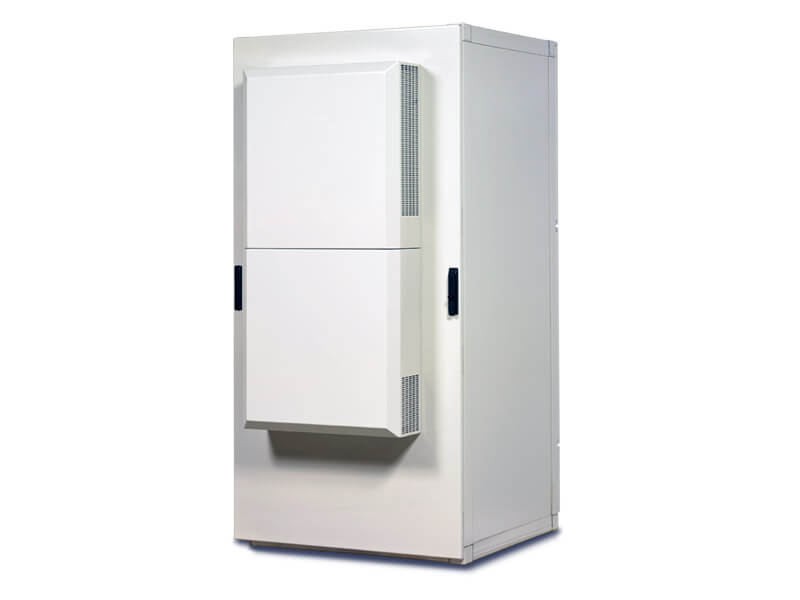

Door mounted heat exchanger or air conditioner options for thermal control
AC power input options available along with optional AC surge protection device

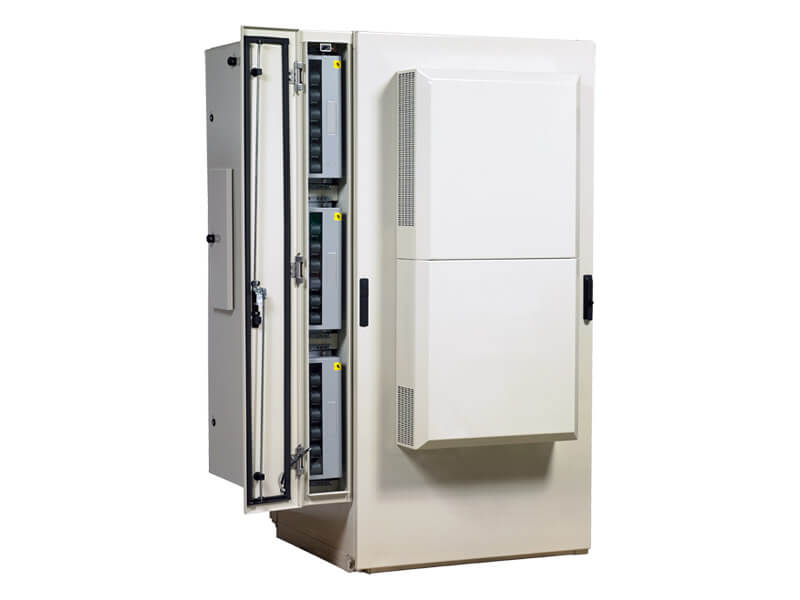

Optional ancillary chambers available for batteries and customer access electronics
Accepts NetSure DC power systems and third party equipment
Integrated or external distribution available with optional DC surge protection
Designed to meet Telcordia’s GR-487-CORE and UL Listed to NWIN 2416 requirements

*To see model-specific downloads, you will need to go to the model-specific product page by selecting the model name in the specifications chart above.
